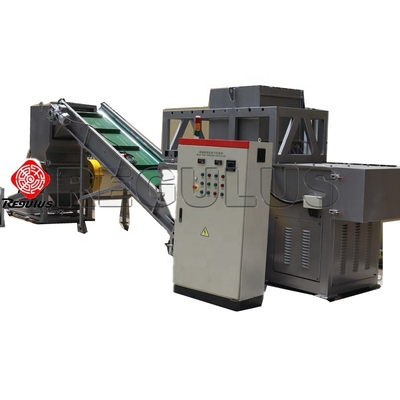

Small Plastic Block Shredder And Plastic Crusher Machine

1.0 set
MOQ
Small Plastic Block Shredder And Plastic Crusher Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Plastic Type: PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS
Machine Type: Plastic Shredder
Max.Production Capacity (kg/h): 5000
Production Capacity (kg/h): 100 - 5000 Kg/h
Use: Shred Plastic Waste, Paper, Wood
Shaft Design: Single
Voltage: 220V/380V/415V/600V Or Customized
Dimension(L*W*H): Depend On Different Model
Weight (T): 3.5
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Key Selling Points: Multifunctional
Showroom Location: Canada, Turkey, United Kingdom, United States, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Malay
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1.5 Years
Core Components: Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
Name: Single Shaft Plastic Shredder
Application: Plastic Blocks, Trays, Pipes, Films, Woven Bags, Etc.
Blades Material: SKD-11 And D2
Rotational Speed: 83RPM
Basic Infomation
Payment & Shipping Terms
Packaging Details: Composite board wooden box or plastic film
Supply Ability: 300 Set/Sets per Year
Product Description
Product Overview

XYD series single shaft shredder

XYD single-shaft shredder is a model specially developed for recycling companies with large waste plastic disposal capacity. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers’ requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
FEATURES AT A GLANCE
This series of single-shaft shredders are equipped with powerful adjustable hydraulic pushers.This design prevents material jams and reduces wear on the internal rails. The shredder is equipped with diameter from 220mm to 660mm. And rotor length is from 600mm to 3000m .
The hydraulic work station is tightly integrated with the shredder chamber, which saves space and protects the hydraulic station, and is easy to replace and maintain. The design of the standard rotor, the equipped cutters, holders as well as the external bearings and hydraulic screen brackets have been recognized by customers and received good feedback.
The XYD series shredder can further adjust the design according to customers' requirements for waste disposal.Customers canchoose cooling systems, rotor surface hardening treatment and other anti-wear devices.



PRODUCT SPECIFICATIONS
Small single shaft shredder:

Model
2250
2260
3060
3080
Cutting Chamber C/D(mm)
857×502
857×602
1200×600
1200×800
Rotor Diameter (mm)
φ224.7
φ224.7
φ300
φ300
Main Shaft Speed (r/min)
83
83
83
83
Screen Mesh (mm)
25
φ25
φ40
φ40
Rotor-knives (pcs)
24+4
28+4
30+4
42+4
Main Motor Power (kw)
15
18.5
22
30
Hydraulic Motor Power (kw)
2.2
2.2
2.2
2.2
Medium single shaft shredder:

Model
4080
40100
40120
40150
Cutting Chamber C/D(mm)
1410×800
1410×1000
1410×1200
1410×1500
Rotor Diameter (mm)
φ390.9
φ390.3
φ390.3
φ390.3
Main Shaft Speed (r/min)
74
74
74
74
Screen Mesh (mm)
φ40
φ40
φ40
φ40
Rotor-knives (pcs)
42+4
54+4
66+4
90+4
Main Motor Power (kw)
37
45
55
75
Hydraulic Motor Power (kw)
2.2
2.2
5.5
5.5
Model
48150
48200
48250
Cutting Chamber C/D(mm)
1650×1500
1450×2000
1560×2500
Rotor Diameter (mm)
φ464.8
φ464.8
φ464.8
Main Shaft Speed (r/min)
74
74
74
Screen Mesh (mm)
φ40
φ40
φ40
Rotor-knives (pcs)
90+4
114+4
144+4
Main Motor Power (kw)
90
75+75
90+90
Hydraulic Motor Power (kw)
5.5
7.5
7.5
Heavy-duty single shaft shredder:

Model
WT66150
WT66200
WT66250
WT66300
Cylinder Stroke (mm)
1000
1000
1000
1000
Rotor Diameter (mm)
φ660
φ660
φ660
φ660
Main Shaft Speed (r/min)
75
75
75
75
Screen Mesh (mm)
φ40
φ40
φ40
φ40
Rotor-knives (pcs)
126+4
158+4
225+4
291+4
Main Motor Power (kw)
75+75
90+90
110+110
132+132
Hydraulic Motor Power (kw)
11
11
11
11
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
Our service
1.Pre-sale support
REGULUS Machinery consists of experienced specialists, we will offer a suitable solution according client's requirement in time. On-site inspection.
2. After-sale service
REGULUS company’s skilled technicians are available to assist with onsite installation, commissioning & training on request. This will enable customers to optimize the performance of their new plant. Customers will be briefed on all aspects relating to operation and maintenance by our technician. Dimensional drawings together with service requirements will be provided prior to delivery of the equipment. This will allow the customer to prepare the site and allow them to commence production in a timely fashion.
REGULUS company holds a adequately inventory of spare parts and their efficient service personnel will ensure that any required part will be dispatched without delay. Delivery of the spare parts may be by air, sea or courier depending on the urgency of the situation. Customers are encouraged to hold their own critical spare parts such as granulator blades and screens to ensure optimal machine condition and performance.
3. Technical support
REGULUS company provides enough hardware resource especially for large-scale production lines, clients can carry out installation, commissioning and acceptance before delivery.
Regular return visit.
