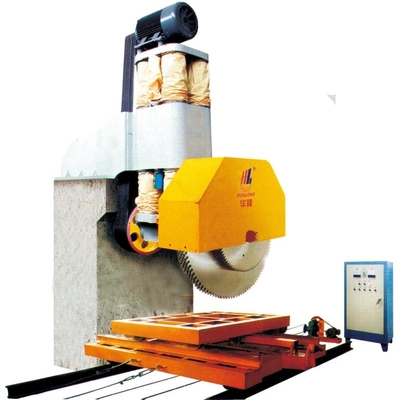

Hydraulic Lift Mulit-blade Stone Cutting Machine HLDQ-1600 is suitable for cutting stone blocks, such as granite, marble...
Technical Data for HLHS-800 | ||||||
Blade | Diameter | mm | 1600, 940 | |||
Quantity | pc | 8-16, + 8 | ||||
Power | Main motor | kw | 55 | |||
Elevator motor | kw | 2.2 | ||||
Tool stroke | kw | 2.2 | ||||
Gross | kw | 59.4 | ||||
Main Performance Parameter | Blade vertical distance | mm | 1000 | |||
Size of cutting | mm | 3500 x 1300 x 950 | ||||
Water consumptiom | L/min | 42 | ||||
Appearance | Gross weight | kg | 8500 | |||
Dimensions (L x W x H) | mm | 8500 x 4000 x 5500 | ||||
1) Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.
2) Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
91.8% Response Rate
91.8% Response Rate
91.8% Response Rate
Packaging | ||
Size | 8500 (L) * 4000 (W) * 5500 (D) | |
Weight | 8500 kgs | |
Packaging Details | 1) All parts covered by pe film. 2) Small / middle sized parts and accessories packed in plywood cartons. 3) With steel wire to fix in container, anti-skiding suitable for shipment. | |
