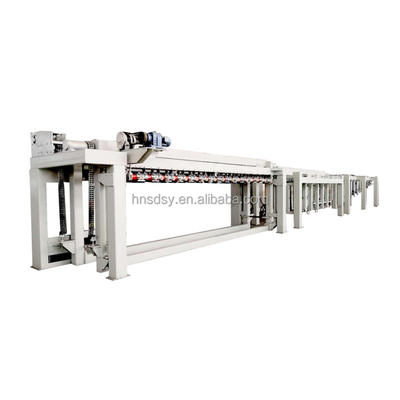

Building Material Stores 1000m3/day Machine Making Panel Plant Factory Supplier Automatic Block Sand Lime AAC Brick Production Line in Uzbekistan

1 Plant
MOQ
$250,000.00(>=1 plants)
Price
Building Material Stores 1000m3/day Machine Making Panel Plant Factory Supplier Automatic Block Sand Lime AAC Brick Production Line in Uzbekistan
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other
Showroom Location: None
Condition: New
Type: Autoclaved Aerated Concrete Block (AAC)
Brick Raw Material: Sand (or Fly Ash), Lime, Gypsum, Aluminum Powder
Processing: Block Cutting Machine
Method: Autoclaved Aerated Concrete
Automatic: Yes
Production Capacity (Pieces/8 Hours): 50,000-300,000m3/year
Voltage: As Per Local Condition
Dimension(L*W*H): Cutter: 17.5*2.8*2.9m
Warranty: 1 Year, 1 Year
Key Selling Points: High-accuracy
Brick Size: 600*200*100mm, 600*300*100mm, Etc
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2021
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Motor, Bearing, Gearbox
Weight (KG): 22000 Kg
Product Name: Plant Supplier Block Sand Lime AAC Brick Production Line In Uzbekistan
Name: AAC Brick Production Line
Keywords: Sand Lime Brick Production Line
Block Type: Aerated Autoclaved Concrete Lightweight Block
Raw Material: Sand (or Fly Ash), Lime, Gypsum, Aluminum Powder
Green Cake Size: 4.2m, 4.8m, 6m
Products: Block & Panel
Cutting Method: Step Fixed & Step Mobile Type
Annual Capacity: 20,000-300,000m3/year
Basic Infomation
Payment & Shipping Terms
Packaging Details: 1000m3/day machine manufacturing automatic panel factory plant supplier block sand lime AAC brick production line in Uzbekistan
Supply Ability: 2 Plant/Plants per Month
Product Description
1000m3/day machine manufacturing automatic panel factory plant supplier block sand lime AAC brick production line in Uzbekistan
INTRODUCTION

Introduction:

AAC is a kind of light cellular silicate products. Main material based on Silicon materials (sand, fly ash, gangue contains
silicon) and Calcium(cement and lime), mix with foaming agent (Aluminium powder), after batching, mixing,
pouring, pre-curing, cutting, steam (autoclaved), and other process, finally, get this light weight concrete products.

Classification:
AAC Classification: in general, it can be classified according to the types of raw materials, manufacture process and functions. Based on the shape of AAC products, it can be divided into: AAC blocks and AAC panels.

Advantage:
AAC is a revolutionary material offering an unique combination of high durability and strength, low weight, excellent heat insulation, fire resistant, noise absorption,unprecedented build ability and superior ecological green features. In China, AAC is one of the light wall materials which was popularized and applied at the earliest and the most widely.
PRODUCT DESCRIPTION
Process flow of AAC production line:
1. Raw materials processing
Put the fly ash or sand into the ball mill to mill via the conveyor belt, after milling, put the slurry into the slurry storage
tank by slurry pump.
2. Batching, mixing and casting
The lime, cement will convey by conveyor to the dry powder measure scale to scale separately. The slurry convey by slurry pump
then to the automatic scale;the power and slurry put into the mixer,pouring into the mould.
3. Curing
After slurry pouring into the mould, put the mould box into the curing room with 50～70℃. After 2-3 hours curing,the blocks become
solid.
4. Cutting
Using reversal crane carry the mould and block to demould on cutting cart. The cutting cart will take the block to level cutting
machine,vertical cutting ,two sides cutting,and remove the top waste material.
5. Steaming
Finished cutting using semi-product crane carry to the front of autoclavegrouped,hoisting machine or dragger will drag steam
trolley into autoclave to steam,it need 10-12 hours.
6. Finished block dealing
Finished product out of autoclave,with separting machine to separate layer by layer.
7. Packing
Using finished block carry hanger clamp the finished product to package line on wooden pallets,after package, then by forklift
transport the finished products to piled yard according to specifications to stack.


Raw material proportion of AAC production line:

--> Fly ash type:
Name
Unit
Proportion
Fly ash
%
65-70
Cement
%
6-15
Lime
%
18-25
Gypsum
%
3-5
Aluminum powder paste (600kg/m³)
1/10000
8
Water & material rate
0.60-0.65
Curing temperature
℃
36-40
Aluminum mixing time
S
30-40

--> Sand type:
Name
Unit
Proportion
Sand
%
55-65
Cement
%
10-20
Lime
%
20-30
Gypsum
%
2-3
Aluminum powder paste (600kg/m³)
1/10000
8
Water & material rate
0.65-0.75
Curing temperature
℃
35-38
Aluminum mixing time
S
30-40
SAMPLE PLANT
1000m3/day machine manufacturing automatic panel factory plant supplier block sand lime AAC brick production line in Uzbekistan
PACKAGING AND DELIVERY
1. General AAC block plant equipment transport with 40 HQ container.

2. Ball mill transport with 40 OT or 40 FR according the size.

3. Autoclave transport on deck of ship.

4. Cutting machine usually transport with 40 FR or on deck of ship.
COMPANY PROFILE
Shende Company, with 20 years manufacturing experience in AAC industry, sells AAC plant all over the world such as Indonesia, Vietnam, Mongolia, Haskstein, Iraq, Saudi Arabic, Kuwait, some other Mid-east countries, and so on.

Excellent after-sales service gives you no worries!
1. We own advanced technicians and ensure supply of enough accessories.
2. We have perfect management and regular tour visit to our customers.
3. The Technical Service Development makes regular tour check and training upon customers.
4. We have training system to rise up customer's technique.
5. We promise one year warranty time for quality.

Factory:

Workshop:

Customer visit:
FAQ
Q1: Can l visit your factory?
A1: Yes. We warmly welcome you to visit our factory through video or on site.

Q2: Can you test our material or block samples?
A2: Yes. We can test it and provide you analysis report.

Q3: Do you provide whole AAC production line flow chart?
A3: Yes. Our experienced engineers are specialized in designing process flow for various project.

Q4. How about price?
A4: As a factory manufacturer, we can quote you the lowest price. For saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.

Q5: How long is the warranty of the AAC production line?
A5: One year generally.

Q6: Do you provide equipment operation training?
A6: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training.
