AAC Light Weight Concrete Block Making Machine
50000 - 200000 CBM
Equipment performance and advanced nature
With reference to foreign advanced technology and current developed modern design, Our aerated
concrete cutting machine specific structure is simple, easy to operate, save energy, high cutting
accuracy.
Aerated concrete cutting unit: including horizontal cutting machine, vertical cutting machine. When
rollover sling turn the brick base body 90 degrees releasing on the cutting trolley, cutting trolley walking forward. In the process of walking, cutting machines cut body from four surface (cut into width 60cm, thickness as per required) , completed the horizontal cutting, then enter the vertical cutting station. Lifting frame move top-down vertically, while cutting wire standing on the frame sawing like two-way swing, vertical cutting accomplished ( cross cut ) into blocks, and then exit the station. Cutting above residual material is by self suction cover station. The ready cut block body on steam cart is driving by crane into the Steam Distribution Cylinder and steaming to finished products.
|
|
||||||||||||||
|
Ⅰ. Raw Material Preparing Process |
||||||||||||||
|
NO. |
Name |
Specifications |
Quantity |
|||||||||||
|
1 |
Batch Machine |
2.5m³ |
2set |
|||||||||||
|
2 |
Belt Conveyor |
8m×0.6 m |
1set |
|||||||||||
|
3 |
Slurry Mixer |
3.2m³ |
1set |
|||||||||||
|
4 |
Waste Slurry Mixer |
4m³ |
1set |
|||||||||||
|
5 |
Slurry Pump(YZ) |
80YZ80-20 |
4set |
|||||||||||
|
6 |
Slurry Storage Tank |
20m³ |
2set |
|||||||||||
|
7 |
Waste Slurry Tank |
20m³ |
1set |
|||||||||||
|
8 |
Cement Silo |
45m³ |
1set |
|||||||||||
|
9 |
Lime Silo |
45m³ |
1set |
|||||||||||
|
Ⅱ. Pouring, Mixing Process |
||||||||||||||
|
10 |
Slurry Weighing Tank |
6T |
1set |
|||||||||||
|
11 |
Powder Weighing Tank |
3T |
1set |
|||||||||||
|
12 |
Air Compressor |
V-O-17/B |
1set |
|||||||||||
|
13 |
Screw Conveyor |
Φ219×2.5m |
3set |
|||||||||||
|
14 |
Aluminum Mixer |
0.05m³ |
1set |
|||||||||||
|
15 |
Casting Mixer |
4.2m³ |
1set |
|||||||||||
|
16 |
Mould Carrier |
3.14m×2.3m |
1set |
|||||||||||
|
Ⅲ. Curing Process |
||||||||||||||
|
17 |
Mould Box |
4400×1660×880mm |
12set |
|||||||||||
|
18 |
Plate of Mould Box |
4140×670×100mm |
70set |
|||||||||||
|
19 |
Winch System |
4KW-35 |
3set |
|||||||||||
|
IV.Grouping, Reverse Process |
||||||||||||||
|
20 |
Crane Turning Machine |
5.5 M×2 M-P=5T |
1set |
|||||||||||
|
21 |
Hydraulic System of Turning Machine |
7.5KW -20Mp |
1set |
|||||||||||
|
22 |
Crane&Block Carrier |
5.5 M×2 M-P=3.5T |
1set |
|||||||||||
|
23 |
Oil Tank of Block Carrier |
5.5 KW -20Mp |
1set |
|||||||||||
|
V. Cutting Process |
||||||||||||||
|
24 |
Frequency Conversion Cutting Machine |
3 M×1.4M |
1set |
|||||||||||
|
25 |
Level Cutting Machine |
5000×2300×2200mm |
1set |
|||||||||||
|
26 |
Vertical Cuting Machine |
4680×2350×2800mm |
1set |
|||||||||||
|
27 |
Hydraulic System of Vertical Cut Machine |
5.5 KW -20Mp |
1set |
|||||||||||
|
VI. Autoclaving Process |
||||||||||||||
|
28 |
Winch Machine before Autoclave |
5T |
1set |
|||||||||||
|
29 |
Steam Cart |
4 M×1.6M |
28set |
|||||||||||
|
30 |
Winch After Autoclave |
5T |
2set |
|||||||||||
|
VII.Electric Controlling System |
||||||||||||||
|
31 |
Automatic PLC Control Cabinet &Wires |
Siemens,Schneider |
3set |
|||||||||||
|
VIII.Mould Box Recycle Using System |
||||||||||||||
|
32 |
Plate Conveyor |
0.87×0.25 |
16set |
|||||||||||

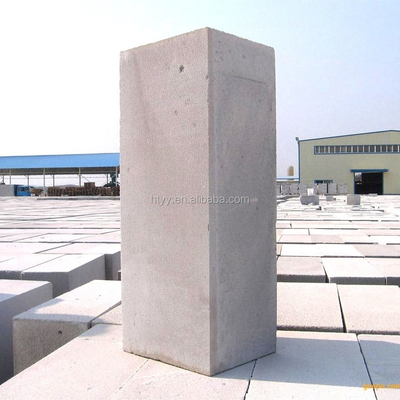

Block Size:
|
Length(mm) |
Height(mm) |
Width(mm) |
|
600 |
150 200 250 300 |
100 125 150 200 |
Huatong Hydraulic Machinery Co., Ltd is belongs to Alin group, which is founded in 1986,
one of the leading supplier of Concrete Block Machine, AAC Block production plant, Concrete Batching plant, cement concrete mixing station in China.
We are the top brand of block making machine in china, AAA Enterprise of Qualityand Service, and certificated by ISO9001. All the main parts of the production lines are made by our own factories, that's why we can give you most competitive price. We have established branch offices in Algeria, Pakistan, Ghata, Indonesia, Vietnam. Our machines have been exporting to more than 40 countries and reigions.
Sincerely welcome you to visit our factories!
Our full life service!
We have big technical team of more than 50 staffs, offer full life service to guarantee our machines working perfectly!
1. We will give you scientific advice and help you to select proper machine before placing order.
2. After shipment made, our engineer will help you to make factory design. Before machine reaching your area, our engineer will helpyou to prepare installation and debugging.
3. Our engineers will finish all work until the machine start nice working. We will train your own
engineers of the machine repairation and maintenance.
4. Our engineer will help you to solve the problems at any time. One time buying, full life service and co-operation.
