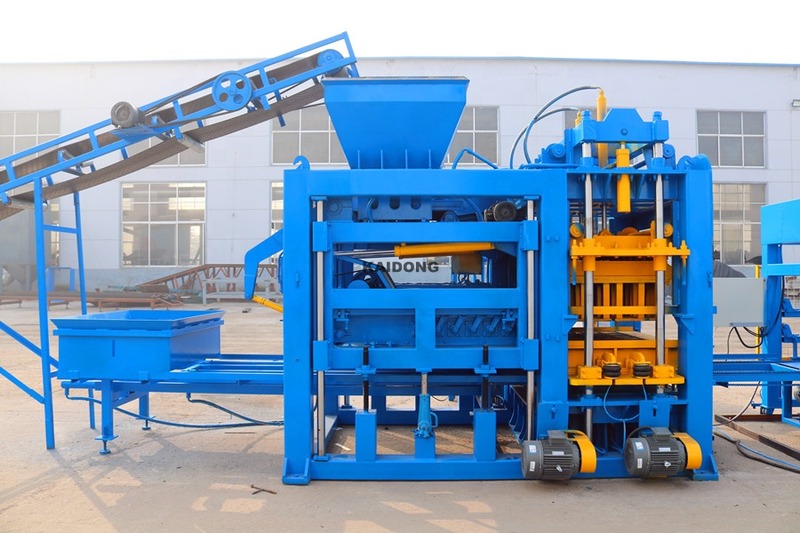

10% Discount Automatic Brick Making Machine Cement Concrete Block Machinery

1 Set
MOQ
10% Discount Automatic Brick Making Machine Cement Concrete Block Machinery
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works
Showroom Location: Bangladesh
Condition: New
Type: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material: Concrete,cement,sand,crushed Stone,fly Ash,
Processing: Brick Molding Machine
Method: Hydraulic Pressure
Automatic: Yes
Production Capacity (Pieces/8 Hours): 9600-47520pcs/day
Voltage: 220/240/380/440V(Customized), 220/380/415/440V(Customized)
Dimension(L*W*H): 3500*2000*2930mm
Warranty: 1 Year
Key Selling Points: Multifunctional
Brick Size: 400*100*200 Mm, 400*120*200 Mm, 200*100*60 Mm, 300*150*100 Mm, 400*150*200 Mm, 240*115*90 Mm, 200*200*60 Mm, 150*150*100 Mm, Other, 400*200*200 Mm, 230*220*115 Mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 6 Months
Core Components: PLC, Pressure Vessel, Engine, Gear, Motor, Pump, Bearing, Gearbox
Weight (KG): 10000 Kg
After-sales Service Provided: Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support
Product Name: QT12-15 Automatic Block Making Machine
Moulding Period: 15S
The Size Of The Pallet: 950*900*25/30mm
Vibration Force: 80-90KN
Mixer Model: JS750
Workshop Area: 250-300m2
Total Machine Power: 36kw
Dimension Of Host Machine: 3500*2000*2930mm
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Bangladesh
Certification: CE/SGS/ISO9001
Basic Infomation
Certification: CE/SGS/ISO9001
Model Number: JS750
Payment & Shipping Terms
Packaging Details: Suitable for sea transportation
Supply Ability: 200 Set/Sets per Year Good reputation and good price
Product Description
Product Description

Introduction

QT12-15 automatic block forming machine adopts a number of domestic leading and international latest technologies, fully reflecting the high content of crystallization technology and advanced design concept of China and Germany's technological wisdom. The humanized design combines 20 years of production experience, and strict process requirements make the machine excellent in quality, stable and reliable in performance, long in use, high in product strength and low in cost, fully reflecting the excellent quality of KAIDONG refined brick machine.

Products Details

1. Vibration system driven by four (Siemens) motors

Siemens motor system is adopted for main machine of brick making machine, and EU standard is adopted for special motor to ensure working stability.
The size of vibration box is increased according to molding area and special brick type. The vibration box with wide area is driven from four directions to ensure the balance of vibration and the effective transmission of vibration force to brick. Compared with vibration system driven by two motors, the vibration efficiency is increased by 30-40%, so as to improve the density and strength of finished brick.

2. Air bag vibration reduction system

It can effectively reduce the vibration noise, quickly eliminate the high-frequency vibration of the whole machine caused by the residual vibration force, so as to prolong the service life of the machine and the mold, and reduce the noise damage and interference to the operators.

3. High precision gear positioning system for mould

Four synchronous shafts (eight synchronous rack and pinion positioning units) are used for accurate positioning of the upper and lower molds. The gear rack is machined and polished by German and Japanese high-precision machine tools to ensure that the front, rear, left and right sides of the mold are always kept at the same level when the mold body moves up and down, so as to ensure that the height of the cement brick is always consistent. At the same time, the friction coefficient of the upper and lower dies is reduced and the service life of the mould is prolonged.

4. High efficiency distribution system of rear crank arm

Adopting the German design concept, the distribution system adopts double crank arm, double synchronous shaft and 4-cylinder high-efficiency and accurate distribution system to ensure the stability of the distribution system and the efficiency of the feeding speed. Ensure the brick production, reduce the maintenance rate of the machine distribution system.

5. PLC and touch screen are made of Siemens brand in Germany

Ensure the stability and long service life of the program.

6. Calyca brand valve of Taiwan or Yuken brand valve of Japan

Ensure the effective input and output of hydraulic system and long service life.

7. Mould

All the moulds are made of the national standard steel (which has reached the European Union standard). After high-precision cutting and high-temperature carburizing heat treatment (900 ℃ high temperature, 200 ℃ tempering), the die hardness reaches 55-63HRC (ordinary steel has only 25-30HRC hardness).

8. Strong multi axis lengthening and thickening vibration box

According to the machine forming area (mold area), choose 2 to 4 axis thickening and lengthening vibration box to ensure the compactness of finished brick

9. Electric box switch system

The main control box adopts French Schneider, German Siemens and or Switzerland ABB switch to ensure working stability and service life.
Specification
QT12-15 Automatic Concrete Block Making Machine Technical Parameters




1
Dimension of host machine

3870*2220*2850mm

2
Weight of host machine

12Tons

3
Molding area

1220*820mm

4
Water consumption

15Tons/Day

5
Workshop area

300㎡

6
Host machine power

66KW

7
Vibration force

100-120KN

8
Pallet size

1300*900*30/35mm

9
Voltage

220/380/415/440V(Customized)

10
Molding period

15-25Seconds

11
Vibration method

Hydraulic+Platform Vibration

12
Vibration frequency

2800- 5100Times/Minute

QT12-15 Block Making Machine
(1)Dimension of host machine: 3870*2220*2850mm (2)Host machine power: 66KW (3)Moulding area: 1220*820mm (4)Vibration force: 100-120KN (5)Moulding period: 15-25Seconds (6)Size of the pallet: 1300*900*30/35mm (7)Weight of the host machine: 12Tons (8)Motor: Siemens (9)PLC: Siemens (10)Hydraulic valve: Taiwan Calyca
Concrete Mixer
(1)JS1000 twin shaft concrete mixer (2)Feeding capacity: 1600L (3)Output capacity: 1000L (4)Production: ≥50m³/Hour (5)Max aggregate size: ≤40/60mm (6)Water supply model: Pump timer (7)Weight: 8800KGs (8)Size: 4000*2280*2650mm
Stacker
(1)Model: KQ-12-S stacker (2)Power: 3KW (3)Mobile double pallet stack (4)Suitable for hollow block and pavers (5)Weight: 1.1Tons
Batching Machine
(1)PL1200 three hoppers (2)Hopper store capacity: 2500L*3 (3)Weight hopper capacity: 1200L (4)Production: 56m³/Hour (5)Batching accuracy: ±2% (6)General dimension: 8300*1950*3000mm (7)Weihgt: 3900KGs
