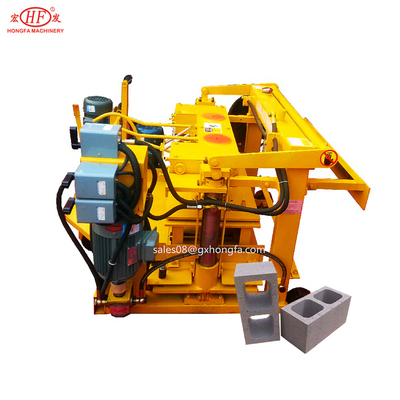

Hydraulic Mobile Concrete Brick Laying Machine
Model: HFB546
(A) Brief introduction
1. HF546 Type Hydraulic ground mould mobile brick machine, is one kind of new production of our company that synthesizing the advantage of both hydraulic and machinery, meeting the requirement of customer from the target market of oversea, smaller investment with higher machinery property.
2. The hydraulic system and the machinery system of this equipment supplement each other and the operating of it is very simple. It can make the production of bricks without pallet, so it save the investment of pallet purchasing.
3. The major vibration form of it is mould vibration, which can make super vibration influence with small power. With the pressure of hydraulic system, it makes the raw material adding adequately and compacting adequately.
(B)Basic Data
Mobile block machine for making concrete block
Technical Parameters
|
Overall Dimension |
1300×1500×1000 mm |
|
Main vibration form |
Platform vibration (vibration frequency 4500r/min) |
|
Cycle Time |
30s (Production capacity 4500-5600 per shift) |
|
Motors Power |
5.95KW |
|
Exciting power |
28.6KN |
|
Weight |
880KG |
|
Raw Materials |
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, expanded perlite, and other industrial wastes |
|
Applied Products |
Concrete blocks, solid/hollow/cellular masonry products |
Productivity
|
Type
|
Block size (mm) |
Qty/ mold (pcs) |
Molding cycle (s) |
Qty/ 8 hours (pcs) |
|
|
Hollow |
400*200*200 |
4 |
30 |
3,840 |
|
|
Hollow |
400*150*200 |
5 |
30 |
4,800 |
|
|
Hollow |
400*100*200 |
7 |
30 |
6,720 |
|
|
Porous |
300*150*150 |
5 |
30 |
5,760 |
< Warm Tips >
Dear friend, to save your valuable time, please kindly add information as follows in your inquiry.
1.The exact size of blocks and bricks you need;
2.Picture of your blocks;
3.Industrial electricity voltage.(volts & Hz)
4.The specific price please refer to your needs, such as details list.
< Remark >
If you want more such as shipping cost, machine video, catalog, details photos and so on, please contact with Ms.Sabrina online now, or add Whatsapp 008618587659617, we will do the best to help you. Thank you.
Pre-sales Service
(1) Professional suggestions (raw material matching, machine selection, the condition of building factory,
feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line anytime.
(5) Introduce the company file, product categories and production process.
(6)Sample testing support.
Sale
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale
(1) Training how to install the machine, training how to use the machine.
(2) Engineers available to service machinery overseas.
(3) Recall clients regularly, get feedback in time,keep well communication with each other.
1.How can I trust you?
1) We are experienced factory: since 1990.
2) The biggest and most famous supplier in China: total 4 factories with 353,000M2 and yearly selling above 100 Million USD.
3) Main products:
-concrete brick machine
-EPS wall panel machine
-AAC production line
-concrete batching plant
-concrete tile machine
-concrete pipe machine.
4) Ever exported to more than 100 countries and area.
5) Continues service and logistics system.
6) High quality products and competitive price.
Our machines have been checked and got the certification ISO9001 and CE, and always have a good reputation of its quality. What's more, every machine will be tested carefully before shipment, making sure all the machines operate perfectly when it comes to your hand.
2.How long is the guarantee?
Our warranty is one year after installation.
3.Can you help to make installation?
We could send one or two engineers to buyer's places to direct the installation and give the operation training.
The customers should pay for the cost of VISA, room and board, and the round-trip tickets for our engineers.
Welcome to visit us, establish a long-term cooperation with each other.
