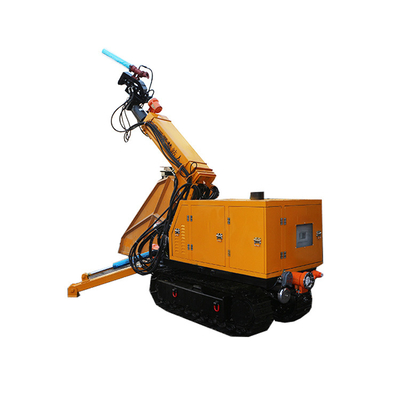

Tunnel application concrete spray system with robotic arm shotcrete machine application
This supply robot arm concrete spray trolley are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.
supply robot arm concrete spray trolley, Concrete Spraying System applied in railway tunnel, Road slope protection etc.
| Output (m3/h) | 3-10m3/h |
| Total telescopic stroke of spray arm | 2350mm |
| Diameter of concrete spraying pipe | 51mm / 57mm / 64mm |
| Walking speed | 0.6km/h |
| Track shoe width | 250mm |
| Hydraulic oil pump displacement | 18ml/r |
| Maximum working pressure | 18Mpa |
| Motor power | 7.5 kW(10hp) |
| Dimension(LxHxW) | 2500*900*1680mm |
| Weight | 2400kg |
| Voltages | 380V/660/1140V |
| Climbing ability | 20° |
| Fuel tank capacity | 100L |
| Width of the outriggers | 2300mm |
| Maximum working height | 6000mm |
| Maximum length of the spray arm fully extended (including the spray head) | 7000mm |
| Rotation angle of spray arm | left 90°, right 200° |
| Pitch angle of spray arm | 55° / -25° |
| Working angle of vertical swing cylinder | 360° |
| Working angle of left and right swing cylinder | 240° |
| Ground clearance | 150mm |
| Ground pressure | 0.06Mpa |
Applications of supply robot arm concrete spray trolley:
1. supply robot arm concrete spray trolley For use in mines, tunnels and outdoor construction.
2. With robot telescope arm, Pumping and Spraying concrete automatically.
3. An automatic system for high precision synchronization between concrete pump and the additive dosing unit
4. All the machine functions are available via the remote control, which facillitates the operator’s work.
5. The six wheel drive increase its perfect manoeuvrability in difficult driving situations.
Robot Shotcrete Machine Features:
1. Spraying System of supply robot arm concrete spray trolley:
Intelligent spraying control, high accuracy, wide spray area, minimum spray rejection.
2. Working range:
a. long-reach spray boom allows to work at long distance and great height.
b. Full hydraulic intelligent spray boom guarantees no interference when all boom sections working at the same.
3. Chassis:
a. Rigid chassis, internal combustion – hydrostatic transmission, 4-wheel drive, 4-wheel steering with swiveling driver’s cab.
b.hydraulic supporting leg hold the vehicle steady at all times, absorb forces when material blending, pumping and spraying.
4. Concrete delivery system:
a.Advanced undamped hydraulic system with 2350mm stroke length offers high and steady pumping pressure, also reduce power consuming and parts wearing.
5. Setting Accelerator Adding system:
a. Reliable frequency convert technology complied with PLC and computer control offer a setting control of adding rate depending on concrete out put.
b. Auto-adjusting frequency control offers motor speed change and auto dosing according to concrete delivery amount.
6. Complete machine:
Minimum height and rotation radius, suitable for space limited work sites
FAQ:
1. How many people that need to operate this kind of machine?
Two persons, one loading the material and the other for the spraying.
2.MOQ:
1set can be acceptable for Trail Order.
Over 3sets can enjoy the wholesale price.
Welcome to join us as our sales agent in your market.
3. How long the life time the main engine?
more than three years, 1 year guarantee for quality problems.
4. Does this kind of machine can work singlely?
No, it need match one air compressor to cooperate.
5.Delivery time:
1 week for Standard Model(motor:380v 50hz 3phases)
15-25days for Cusmoized Model.
6.Payment:
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable).
100%TT in advance (specially for air shipment or small amount).
7.Available Shipment:
FOB Qingdao
FOB Shanghai
FOB Tianjin
Packaging & Delivery
Wooden case packing or according to customers’requirement
Within 7 working days after we received advanced payment
...
| Contact Person : | Maple |
|---|
