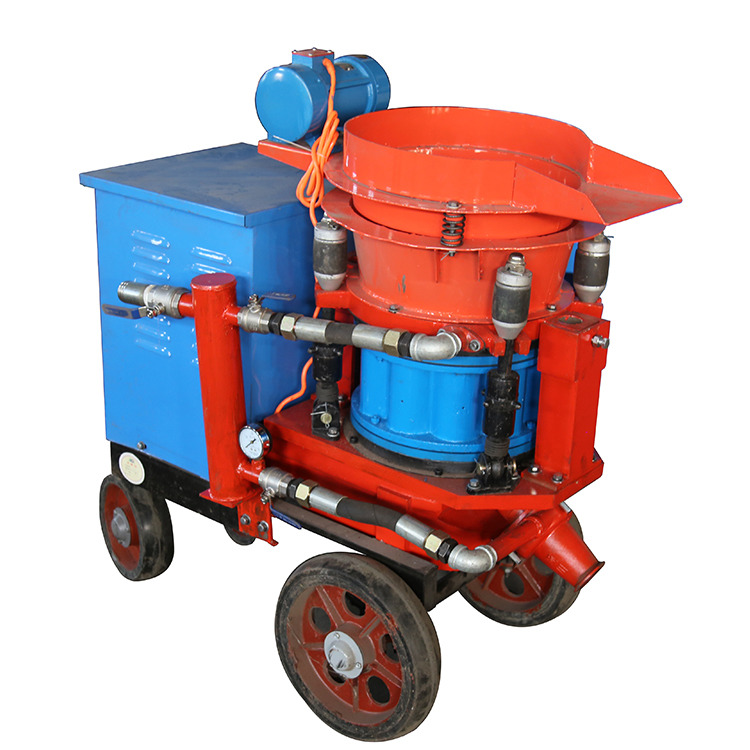

Construction machine dry shotcrete Pz-5 concrete spraying machine
Application
· tunnels, hydro-power engineering, mines, underground engineering, civil engineering and slope stabilization, etc.
· Artificial soil seeding for no soil surface, such as rock, sand, and for no fertility soil surface.
· Refractory spraying and repair for industrial kilns or kilns’ inner liner.
Feature
· Non-adhesion going-through rotor with new material chamber.
· Thin follow conveying method with vortex flow, so the spraying flow is even.
· Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dust leak and prolong consumption parts life.
· Particularly used for dry, damp mix and steel (polymer) fibre reinforced shotcrete.
· Three drive models: by Electric motor, air motor or diesel engine.
Parameter:
Item
| PZ-3 | PZ-5 | PZ-7 |
Output | 3.5m3/h | 5m3/h | 7m3/h |
Max. Convey distance | Horizontal:200m Vertical:20m | Horizontal:200m Vertical:20m | Horizontal:200m Vertical:20m |
Water cement ratio | ≤0.4 | ≤0.4 | ≤0.4 |
Max. Aggregate. size | 20mm | 20mm | 20mm |
Hose inner size | 38mm | 51mm | 64mm |
Operating air pressure | 0.4~0.6MPa | 0.4~0.6MPa | 0.4~0.6MPa |
Air consumption | 3-4m3/min | 7-8m3/min | 8-10m3/min |
Rotor diameter | 350mm(150) | 438mm | 480mm |
Motor power | Y112M-6-3KW | Y132-6-5.5(KW) | Y132-6-7.5KW |
Voltages | 380v or as your requirement | 380v or as your requirement | 380v or as your requirement |
Overall dimension(mm) | 1040*550*940 | 1280*700*1280 | 1500*700*1280 |
Whole weight | 260kg | 600kg | 700kg |
wheel | Nylon wheel ; Rubber wheel ; skid wheel ; Rail wheel | ||
