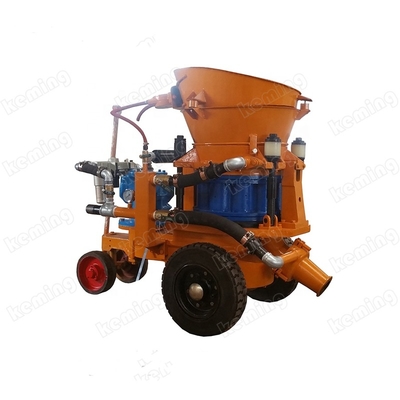

Pneumatic Overall Shotcrete Machine 20mm Concrete Pumping Shotcrete Machine Plaster For Tunnel Support

1.0 Sets
MOQ
Pneumatic Overall Shotcrete Machine 20mm Concrete Pumping Shotcrete Machine Plaster For Tunnel Support
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining
Showroom Location: Viet Nam, Philippines, Indonesia, India, Kenya
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Engine, Pump
Condition: New
Max. Conveying Distance: 200/40m
Max Aggregate Size: 15mm
Hose Inner Diameter: 51 Mm
Air Consumption: 7m3/min
Voltage: 220v/380v/440v/660v
Power: 4KW
Dimension(L*W*H): 1200*780*1100(mm)
Weight: 400 Kg
Warranty: 1 Year
UNIQUE SELLING POINT: Low Dust, Energy-saving
After Warranty Service: Online Support
After-sales Service Provided: Online Support
Product Name: KPZ-3A Shotcrete Machine
Application: Shotcrete Machine
Capacity: 3 M3/h
Suitable Mixture Ratio: Cement/sand And Gravel=1:3~5
Suitable Water And Cement Ratio: ≤0.4
Conveying Pipe ID.: 51/42mm
Drive Mode: Pneumatic Motor
Keywords: Shotcrete Machine
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard export package or customised package
Supply Ability: 100 Set/Sets per Month
Product Description

Air Driven Shotcrete Machine 20mm aggregate Concrete Pumping Plaster For Tunnel Support

Product Description

Shotcrete Machine Features:

1.KPZ Series Dry Shotcrete Machine include Electric Shotcrete Machine (KPZ-3, KPZ-4, KPZ-5, KPZ-7, KPZ-9, KCPZ), Pneumatic Shotcrete Machine (KPZ-3A, KPZ-4A, KPZ-5A, KPZ-7A, KPZ-9A), Diesel Engine Shotcrete Machine (KPZ-3D, KPZ-4D, KPZ-5D, KPZ-7D, KPZ-9D)

2. KPZ-3A Pneumatic Shotcrete Machine are consisted of driving device, rotor assembly, air system, concrete spraying system, air motor etc.

3. KPZ-3A Pneumatic Shotcrete Machine have advanced technology, rational structure, convenient operation, stable performance and long service life.

Shotcrete Machine Parameters:

Model

KPZ-3A

KPZ-4A

KPZ-5A

KPZ-7A

KPZ-9A

Output

2~3 m3/h

3.5~4.5 m3/h

4.5~5.5 m3/h

5.5~6.5 m3/h

6.5~7.5 m3/h

Max.conveying dist.

250 m

230 m

200 m

150 m

100 m

Max.aggregate size

15 mm

18 mm

20 mm

20 mm

20 mm

Hose inner diameter

φ42/51 mm

φ51 mm

φ51 mm

Φ57 mm/φ51 mm

Φ57 mm/φ64mm

Air consumption

5 m3/min

8 m3/min

8 m3/min

9 m3/min

9 m3/min

Motor power

6 m3/min

8 m3/min

8 m3/min

9 m3/min

9 m3/min

Rated working pressure

0.6Mpa

0.6Mpa

0.6Mpa

0.6Mpa

0.6Mpa

Company Information

Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd. Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.

Achievements:

Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.

Business Scope:

As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.

Main Products:

wet/dry shotcrete machine, plastering machine, concrete/shotcrete pump, grouting pump, cement pump,mortar pump, slurry pump, hose pump, cement/concrete mixer, concrete foaming machine etc.

Certifications

FAQ

1. Q: Which shotcrete machine should we choose?

A: To recommend the most suitable model, please let us know your requirements about the machine, then will give you the price and professional suggestions.

2. Q: What is the vulnerable part? How many spares should we prepare?

A: After long-time running, the rubber plate, steel plate, rubber cavity, spraying nozzle, delivery hose may get worn. We will offer some spares for free.Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale -how many cubic meters you will spray.

3. Q: Can we have customized model?

A: Yes. Customized production and OEM production are available according to your actual requirements.

4. Q: Do i need technical skills to operate this machine?

A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.

5. Q: What should we do if there are some problems with the machine?

A: The Operate Instruction will help with routine maintenance and common problems.Also, you can contact us for technical instruction by email, instant messenger or live video etc.

6. Q: What is the lead time?

A: 1 week for sample model, 2~3 weeks for customized model. It depends for mass production.

7. Q: How about the package?

A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.

8. Q: How to place an order?

A: Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance to get full protection for first order.

9. Q :How to pay for this order?

A: Generally, TT, 30% deposit 70% before shipment;L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
