Building Material Shops Full Automatic Concrete Press Eco-friendly Solid Block Making Machine 9inch Brick Machine

1 Set
MOQ
Building Material Shops Full Automatic Concrete Press Eco-friendly Solid Block Making Machine 9inch Brick Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works
Showroom Location: Viet Nam, Philippines, Brazil, India, Bangladesh, South Africa, Nigeria
Condition: New
Type: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
Brick Raw Material: Cement
Processing: Brick Molding Machine
Method: Vacuum Extruder
Automatic: Yes
Production Capacity (Pieces/8 Hours): 25000pcs/8hrs
Voltage: Request
Dimension(L*W*H): 8200*2900*3020
Warranty: 1 Year
Key Selling Points: High Productivity
Brick Size: 400*100*200 Mm, 400*120*200 Mm, 200*100*60 Mm, 300*150*100 Mm, 400*150*200 Mm, 240*115*90 Mm, 200*200*60 Mm, 150*150*100 Mm, 400*200*200 Mm, 230*220*115 Mm
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Gear, Motor, Bearing, Gearbox
Weight (KG): 15000 Kg
Raw Material: Sand,stone, Cement, Fly Ash Etc
Color: Optional
Keywords: Brick Making Machinery
Block Type: Multifunctional
Weight: 15tons
Product Name: Hongfa Block Machine
Main Market: America
Products: Concrete Interlock Blocks
Pallet Size: 1420*900*30
Molding Cycle: 15-20s
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: Viet Nam, Philippines, India, Kenya, South Africa, Nigeria
Certification: CE/ISO9001:2000
Basic Infomation
Certification: CE/ISO9001:2000
Payment & Shipping Terms
Packaging Details: Standard Marine packing or according to customer's requirements.
Product Description
Product Description

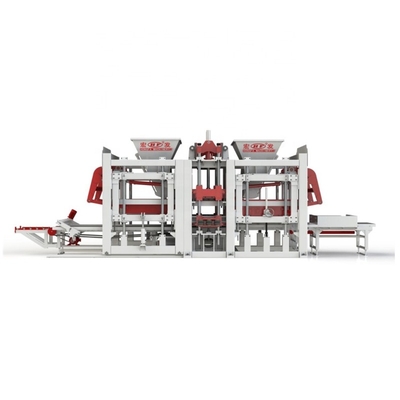

Eco-friendly press full automatic concrete solid block making machine 9inch brick machine


Product Application

This is one of our multifunctional fully automatic block making machine, it can produce hollow block, solid brick, curb stone, with or without color paver.......


The raw materials used can be cement with sand, stone, fly ash, construction waste, lime..... Or without cement.

We make mould according to block/brick size and shape,so customers can get different type blocks or bricks,and production efficiency is also different.
Molds
Samples
Paving brick
SPECIFICATIONS FOR HFB5250A AUTOMATIC BRICK MAKING MACHINE
Cycle Time
Vibration Force
Motor Frequency
Power
15-20S
160KN
0-60Hz
66KW
Molding Method
Weight
Machine Size
Pallet Size
Hydraulic+Vibration
15.6Ton
8200*2600*3020mm
1420*900*30mm
Block Type
PCS Per Press
PCS Per Hour
PCS Per 8 Hours
Hollow Block 400*200*200mm
12
2160 - 2880
17280 - 23040
Hollow Block 400*150*200mm
16
2880 - 3840
23040 - 30720
Hollow Block 400*100*200mm
24
4320 - 5760
34560 - 46080
Solid Brick 240*115*53mm
65
11700 - 15600
15600 - 93600
Paving Brick 220*110*60mm
42
7560 - 10080
60480 - 80640

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double cylinders to control the pressing and moving up.

4) Running in a high automatization and intellectualization, reducing man powers.

5) Airbag cylinders clamping greatly prevents the machines from shaking, also controls the moulding weight and height. Vibration-proof design avoids the vibration noises.

6) Convenient and faster mould changing device.

7) Frequency motors and universal drive shaft used can increase the vibrating efficiency and reduce the  energy consumption, meanwhile to protect the machines for longer span life.

Detailed Images

Machine Parts

Name: Hydraulic system

Brand: Calyca

Original: Taiwan

World famous brand, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name: PLC Control system
Brand: Siemens
Original: Germany
World famous brand. Highly intelligent controlling system, it is easy to control and working stable.

Machine Parts

Name: Frequency motor and universal drive shaft
Brand: Siemens
Original: Germany
World famous brand, strong driving force, low fuel consumption, high economic benefits.

Main Features

Name: Airbag
Brand: HTO
Original: China
Domestic famous brand, strong and long spanning like.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
120cm (L) * 60cm (W) * 140cm (H)
Weight
1 T



Packaging Details
The normal package is plywood box(Size: L*W*H). If export to european countries,so need to worry about the  fumigation.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Packaging
Size
500cm (L) *220cm (W) * 260cm (H)
Weight
14 T



Packaging Details
The normal package is  film for packing or pack it according to customers special request.
Related Products

Automatic Block Clamper

91.8% Response Rate


Our Main Productus:
- EPS concrete wall panel machine
- AAC block production line
- Concrete block machine
- cocnrete batching plant
- cocnrete pipe machine
- concrete tile machine
- Artificial Quartz stone machine

Automatic Block Clamper

91.8% Response Rate

Automatic Block Clamper

91.8% Response Rate














Our Company

Brand and quality

We are a construction and building materials equipment manufacturer mainly produce all kinds of AAC block making machine,concrete mixing plant,mixer,concrete block making machine,concrete tile making machine and concrete pipe making machine etc. with more than 30 years experience and being the biggest manufacturer in China at present.All the products are conformity with the standard of the state, and gets the ISO9001-2000 Quality System certificate, also honored as "One of the Top Ten Famous Brands of Brick & Tile field in China" and other honors.

8 Reasons that you choose HONGFA:
1.Famous brand in block making machine, wall panel machine and AAC block plant, selling its products to over 80 countries world wide.
2.Famous registered trademark in China.
3.China national key high-tech enterprise with hundreds of patents.
4.National enterprise abiding by contract and keeping good faith.
5.Top 10 influential brand of China brick and the tile industry.
6.First place in productionand to produce sales of brick machine and the tile making machine in China.
7.ISO quality system certificate enterprise.
8.Supporting institution of Shandong machinery institute.

FAQ

1. who are we?
We are based in Guangxi, China, start from 2011,sell to Domestic Market(35.00%),Africa(20.00%),Southeast Asia(15.00%),Mid East(10.00%),South America(5.00%),Eastern Asia(5.00%),Central America(5.00%),Northern Europe(3.00%),South Asia(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
3.what can you buy from us?
AAC Block Production Line/Lightweight Wall Panel Machine/Concrete Block Machine/Concrete Tile Machine/Concrete Pipe Machine
4. why should you buy from us not from other suppliers?
Close 30 years machinery experience. Export to more than 100 countries and areas. The most welcome and famous brand in China Offer the most competitive machines
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,CIP；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese
6. Can this machine make my brick or other size block?
We would design and do the mold according to customer's Drawing.
7. Are your company is the manufacture or trading company?
We are Direct factory,not agent or trading company,and the quality and after-sale services is guaranteed.
8. When do you delivery the goods?
Normally 30 days after receipt of deposit and molds confirmation from Buyer.
9. What about the payment terms?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable).
10. Does the price include the mold?
Yes,the above price includes one set mold.
11. Would you mind provide the video?
The video is available to send to you, please contact me.
12. How about the commissioning of the machine and training to workers?
Yes, after finish the installation of the block production line, our engineer will do the testing and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines.
13.How can I trust the machines quality?
Our products passed ISO9001-2000 and CE identifications, and we making machines for more than 30 years,with full experience,updating technical idea and application.Furthermore our machines have been exported to more than 96 countries and always have a good reputation from our oversea customers.We will do fully test our products before shipment,make sure every equipment work well when they come to your hand.
