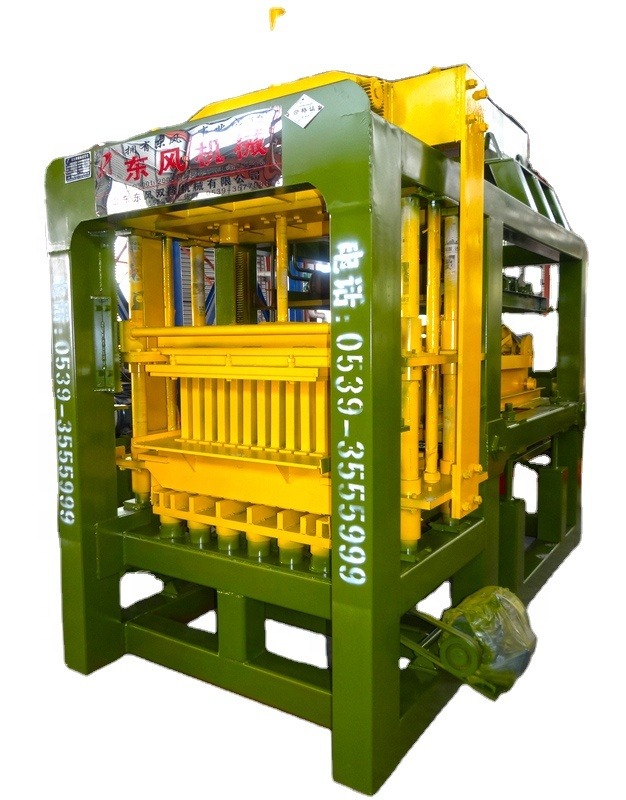

QTY4-15 Concrete brick machine full automatic block making machine line
Introduction
1. PLC intelligent control with data input and output device, realizes human-machine interface dialogue. Also includes advanced safety logic control and fault diagnosis system.
2. Advanced hydraulic proportional control technology, easy to control the pressure and volume of any oil branch in the hydraulic system. Suitable for any kinds of raw materials.
3. Feeding material in low-frequency, and vibrating in high-frequency, together with mould pressing and platform vibrating. So concrete can liquefied and exhaust completely in 2 to 3 minutes to produce blocks with high density and strength.
4. Multi-functional machine. By changing moulds, it can produce road verge brick, river channel brick, slope-protecting brick, plaza pavement brick, dock brick and grass brick, etc.
Technical parameters of full automatic block making machine line
|
Product Type |
QTY4-15 Automatic Block Making Machine |
|
Dimension |
4300x1500x2900mm |
|
Pallet size |
850x550x30mm |
|
Weight |
5500KG |
|
Control style |
PLC |
|
Forming style |
Hydraulic and platform vibration |
|
Power |
26.45KW |
|
Molding Cycle |
15-22S |
|
Block height |
50-200mm |
|
Voltage |
As per client’s local voltage |
|
Rated pressure |
16Mpa |
|
Vibration frequency |
4600r/min |
|
Staff |
4-6workers |
|
Warranty |
12 months |
|
Raw material |
Crushed stone, sand, cement, fly ash and other construction wastes. |
|
Applied Products |
Concrete block, hollow block, solid block, cement block, solid/hollow/porous masonry products, paving brick with or without face mix, garden and landscaping brick, slabs, kerbstone, grass block, slope block, etc. |
|
Applied Fields |
Widely used in buildings, road paving, squares, gardens, landscaping, city constructions, etc. |
Capacity of automatic hydraulic concrete block making machinery
Simple production line configuration of automatic hydraulic cement brick making machine
Block sample
Packing and Loading of hydraulic press concrete brick making machine
Our factory
Shandong Dongfeng Shuanglong Machinery Co., Ltd. is located in Linyi city, Shandong province, China. It's a factory with 20 years experience in machinery R&D and manufacture. We mainly offer concrete block machine, AAC / ALC block equipment line and environmental protection equipment.
Our factory covers an area of 96,000m2 and has 5 production plants. We have 28 senior engineers and more than 300 technicians. Our products are exported to more than 20 countries. Annual output of more than 4,000 sets of various machinery and equipment. We belong to the Top 3 block machine manufacturers.
Why chose us?
We are manufacturer
Specialize in block machine industry more than 20 years. We have rich expenrience and enjoy good reputation in China and foreign market.
Technology and Quality
We always adopt advanced and reliable technology in the world, use Germany Simens motor and Taiwan Baibu oil pressure system.
Price
We always try our best to reduce the production cost and marketing cost and put these money saving to customers. Providing our customers with best quality machine of lowest price is our honor and permanent goal.
We provide considerate service
Inquiry service:
Accept user’s enquiries by all kinds of ways and establish user’s product cognition. Provide all kinds of product data and let customer understand characteristics of product.
Pre-sale service:
Accept inquiry of customers, confirmation of investment advice of choice of product, assist the customers to design the workshop
In-sale service:
Sale of product, help customers build the base, technical training of customers’ workers, practice of operation, help to install and train the operators in the workshop.
After-sale service:
24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain, long distance malfunction control.
Unique service:
System up-grade, special design according to the customers’ requirements, mould renew, supply new technology and products information.
