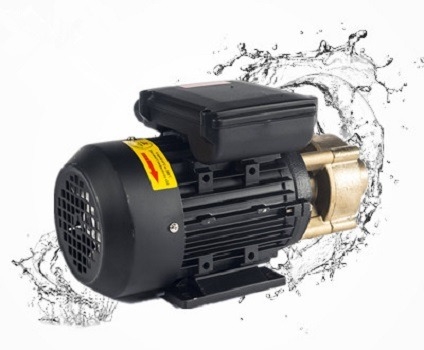

Home /Products/Hot Oil Pumps/Food and beverage industry WF small high head vortex copper pump for hot and cold change system for solar circulation

Food and beverage industry WF small high head vortex copper pump for hot and cold change system for solar circulation

1.0 Sets
MOQ
Food and beverage industry WF small high head vortex copper pump for hot and cold change system for solar circulation
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1years
Customized Support: OEM, ODM
Model Number: WF - 10
Application: Food And Beverage Industry, HVAC OEM, Machining, Temperature Control, Other
Power Source: Electric
Pressure: Max 5.5bar
Structure: Single-stage Pump
Outlet Size: G3/4''
Voltage: 380v, 3 Phase - 380 V
Power: 0.75kw
Outlet Diameter: G3/4''
Frequency: 50 Hz
Speed Rate: 2760 R/min
Pump Weight: 12.5 Kg
Certification: Ce
Basic Infomation
Certification: ce
Model Number: WF - 10
Payment & Shipping Terms
Packaging Details: Wooden case for hot oil or hot water pump.
Supply Ability: 30000 Set/Sets per Month
Product Description
Video Description
Product Overview


WF-10 The pump transfer the non flammable and explosion liquid without the particles, fiber(water,oil ,glycol and other medium).
The pump is fine appearance ,high head , fast flow speed ,low noisy and small vibration and other advantages.
Application Area: Small TCU, Boiler feed water system and other area

Circulation Medium: Water, ethyleneglycol, alcohol, thermal oil, hydrocarbon solution, silicone oil and other liquids without particles and fibers.

Working Condition:
Thermal Conductivity Water
Thermal Conductivity Oil
Ethylene Glycol
Working Temperatu re
Maximum Elevation
 Maximum Working Pressure
+5°C-+160°C
+5°C-+200°C
-40°C-+180°C
-5°C-+40°C
1000m
10bar
FEATURES AT A GLANCE
Performance Curve
Testing base:The above characteristic testing is based on the water transferring with the normal speed under 20 degrees. The error of the capacity and head is about 10%,characters'error is about 10%.The pump characters change according to the different of the liquid mediuems'proportion and density.
Structure Decomposition
Installation Size
PRODUCT SPECIFICATIONS
No
Item
Data
1
Power
0.75KW
2
Horsepower
1Hp
3
Pressure
Max 5.5bar
4
Outlet Size
G3/4''
5
Outlet Diameter
G3/4''
6
Frequency
50 Hz
7
Speed Rate
2760 r/min
8
Pump Weight
12.5 Kg
9
Max Flow Rate
50 L/min
10
Max Head
55 / 35 m
11
Pump’s Feature
1) Small volume high pressure
2) Fast flow rate, high head, stable performance , widely application range
3) Easy to maintenance, low cost
Production Process
Product packaging
