Features

Specifications

Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Printing Shops, Construction WorksÂ , Food & Beverage Shops, Advertising Company

Showroom Location: Egypt

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product In 2022

Warranty Of Core Components: 1 Year

Core Components: NoEnName_Null

Condition: New

Type: Natural Circulation

Usage: Industrial

Structure: Fire Tube

Pressure: Low Pressure

Steam Production: Max. 20t/h

Style: Horizontal

Fuel: Oil-fired

Output: Steam

Dimension(L*W*H): Depends On Capacity

Weight: According To Your Specific Capacity

Warranty: 1 Year

Key Selling Points: Automatic

Advantage: Top 1 A-Class Boiler Manufacturer

Energy Saving: Environmental Protection

Company Type: Manufacturer And Trading Company

Rated Steam Capacity: 3 T/h

Rated Working Pressure: 1.25 Mpa

Steam Temperature: 194 â„ƒ

Feed WaterTemperature: 20 â„ƒ

Machine Decided Condition: Mainly According To Your Capacity,Pressure,feed Water Temperature.

Installation: Supply Professional Installation Guidance

Heat Efficiency: >90%

Basic Infomation

Payment & Shipping Terms

Packaging Details: Exporting standard: boiler body and big parts in nude package,other small accessories in plywood/iron boxes.

Supply Ability: 5000 Set/Sets per Year

Product Description

Product Category

PRODUCT CATEGORIES

→ VIEW ALL

Steam boiler

Hot water boiler

Thermal oil boiler

Hot air boiler

Pressure vessel

CFB (Circulating fluidized bed) boiler

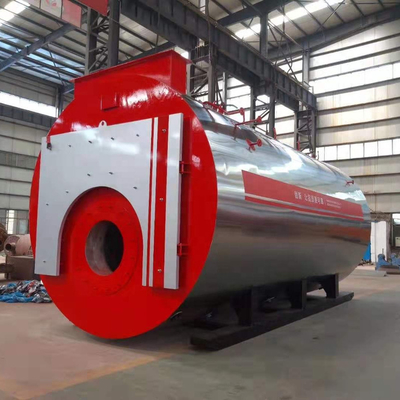

5000kg gas oil steam boiler 500 kg diesel 50 bhp natural fired

Product Description

1. 5000kg gas oil steam boiler 500 kg diesel 50 bhp natural fired Features:

1.The type boiler adopts three return structure ,design large volume of combustion chamber,make burning more fully.

2. The use of advanced wave type furnace structure increased the heat transfer area and satisfy the free expansion after the furnace is heated.

3.The smoke tube using thread structure ,strengthened the heat tranfer effect.

4.Boiler adopts wet type structure which has high reliability and low maintenance.

5.The design of back sight device is convinent for observation.

6.Design the protection function of super temperature, overpressure,water shortage,leak detection,fire extinction,this guarantee the safety of operation .

7.Boiler is configured of imported burner with the good performance of control to realize the automation of operation.

8.The type of boilers has high thermal effiency and stable output, has strong adaptability to load.

2. Usage of 5000kg gas oil steam boiler 500 kg diesel 50 bhp natural fired:

The steam boiler can be used for producing sufficient steam for product manufacturing process in the weave factory, printing and dying, papermaking, and rubber, plastic chemical, pharmaceutical, etc. And for heating room, bath, air conditional, and daily life water in the factories, departments, hotels, schools, restaurants, services industries etc.

3. Technical parameter of 5000kg gas oil steam boiler 500 kg diesel 50 bhp natural fired:

Item		Unit	WNS0.5-0.7-YQ	WNS0.7-0.7-YQ	WNS1-1.25-YQ	WNS2-1.25-YQ	WNS3-1.25-YQ	WNS4-1.25-YQ	WNS6-1.25-YQ	WNS10-1.25-YQ	WNS15-1.25-YQ	WNS20-1.25-YQ
Rated Evaporation		T/H	0.5	0.7	1	2	3	4	6	10	15	20
Rated Work Pressure		Mpa	0.7	0.7	1.25	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Saturated Steam Temperature		℃	184	170	194	194	194	194	194	194	194	194
Feed Water Temperature		℃	20	20	20	20	20	20	20	105	105	105
Heat Area		m²	17.25	28.53	50.41	81.99	93.57	114.4	174.63	217.6	379	658.14
Boiler Thermal Efficiency Oil(Gas)		%	91.98	88.99	92.2	90.76	91.3	91.3	91.5	92	93.1	93.3
Water Capacity of the Boiler		m³	0.78	1.58	1.8	3.3	5	6	9	10	11.8	135
Exhaust Gas Temperature Oil(Gas)		℃	151.7	224.49	140.8	138.68	148	166	140.65	145	142	135
Design of fuel			Light oil Natural gas	Light oil Natural gas	Light oil Natural gas	Light oil Natural gas	Light oil Fuel oil Natural gas	Light oil Fuel oil Natural gas	Light oil Fuel oil Natural gas	Light oil Fuel oil Natural gas	Light oil Fuel oil Natural gas	Light oil Fuel oil Natural gas
Consumption of Oil(Gas)		Kg m³/h	34.4/41.8	49.4/59.9	68.8/83.5	140.6/170	207/252	278/334	412/463	687/771	969/1156	1292/1541
Dimension (LWH)		mm	282013401485	280015661732	265617501842	375019002150	409520252388	434022502700	530023802650	140040004300	715032003540	1067051004857
Burner (Oil)	Model		BT34P	TBL60P	TBL105P	TBL210P	BT250DSG	BT300DSG	GI510DSPG	GI1000DSPG	TS3G	IBR8L
	Burner Rating	KW	178-380	250-600	320-1050	800-2100	873-3186	1034-3854	1430-6500	2500-10500	3867-11600	15630
	Motor Power	KW	0.37	0.65	1.5	3	7.5	7.5	18.5	22	37	55
Burner (Gas)	Model		TBG40P	TBG60P	TBG120P	TBG210P	BGN250P	BGN350LX	GI700DSPGN	GI1000LX	TS3G	IBR8L
	Burner Rating	KW	185-425	120-600	240-1200	400-2100	490-2500	400-3950	1300-7000	1500-10850	2320-11600	15630
	Motor Power	KW	0.37	0.75	1.5	3	7.5	7.5	18.5	22	37	55
Boiler Feed Pump	Moedl		CDZL2-160	CDZL2-160	CDZL2-160	CDZL4-160	CDZL4-160	CDZL4-160	CDLF8-160	CDLF16-160	DG5*9	DG5*9
	Hydraulic Head	M	160	160	160	160	160	160	180	160	210	210
	Flow	m³/h	2	2	2	4	4	6	8	12.5	20	25
	Motor Power	KW	1.5	1.5	1.5	3	3	3	4	15	18.5	22

Packaging & Shipping

PACKAGE:

Boiler body and big auxiliaries are wrapped with membrane,small auxiliaries are packed with plywood/iron box, then loaded into container(closed,flat rack or top-open).Waterproof will be covered if loaded in flat rack or top-open.

DELIVERY TIME:

7-40 days after confirming order,exact delivery date should be decided according to
production season and order details.

ABOUT YONGXING GROUP

Since our start in the 1990s, we have developed from a small enterprise into a comprehensive group, National A- class boiler manufacturer and A-class pressure vessels manufacturer.

With three existing plants, we integrate the R&D, and has passed the certification of ISO9001 Quality Management System and ISO 14001 environment management system.

FAQ

Q What is steam boiler used for?

A Industrial steam boiler are designed for low-pressure or high-pressure applications. Low-pressure boilers are limited to 15 psig design, and are typically used for heating applications. High-pressure boilers are typically used for process loads and can have an operating pressure of 16 to more tan 1000 sig. Most steam boiler systems require saturated steam, which means the water and the steam in the vessel are at the same temperature.

Q What are the available fuel for the steam boiler?

A Natural gas, LPG , Light Oil, Diesel, Heavy oil, oil/gas dual fuels , c oal, b iomass pellet, r ice h usk, bagasse, etc.

Q What capacity are provided for steam boiler?

A 0.5t/h, 0.7t/h, 1t/h, 2t/h, 3t/h, 4t/h, 6t/h, 8t/h, 10t/h, 12t/h,15t/h, 20t/h.

For other capacity, please confirm with us firstly.

Q What design pressure are provided for steam boiler?

A 0.7Mpa(7Bar), 1.0Mpa(10Bar), 1.25Mpa(12.5Bar), 1.6Mpa(16Bar).

Operating pressure can be controlled in the range of design pressure.

How can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

What is your term of delivery?

We accept EXW, FOB, CIF, etc. You can choose the one which is most convenient or cost effective for you.

What about the lead time?

Honestly, it depends on the order details and the season you place the order.

Certifications

CERTIFICATE

Strength proof

All our products are passed the inspection standards included ISO, GB, etc with 100% quality.

Our Advantages

OUR ADVANTAGES

STRENGTH

3 Boiler manufacture factories in Henan Province.

300,000 square meters factory areas in total.

Registered capital 101.7 million and Fixed assets 42.77 million.

PROFESSIONAL

100 sets large and medium-sized productive equipment and more than 60 sets advanced equipment for products quality testing.

STATUS

A-Class boiler and pressure vessels manufacturer in China.

SERVICE

Professional one package service from pre-sales service to after-sales service.
