Features

Specifications

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms

Showroom Location: None

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: NoEnName_Null

Condition: New

Type: Natural Circulation

Usage: Industrial

Structure: Hot Oil Tube

Pressure: Low Pressure

Steam Production: 0

Style: VERTICAL

Fuel: COAL BIOMASS FIRED

Output: Heating

Dimension(L*W*H): Depends

Weight: 5~50ton

Warranty: 1 Year

Key Selling Points: Accurate Temperature Control

Color: Any Color As Your Require

Rated Steam Capacity: 120-1400KW

Highest Wokring Temperature: 350C

Design Pressure: 1.1Mpa

Working Pressure: 0.8Mpa

Thermal Efficiency: 75-80%

Furnace Oil Volume: 0.1-1.02 M3/h

Circulation Oil Volume: 10-100 M3/h

After Warranty Service: Video Technical Support, Online Support

Local ServiceÂ Location: None

Certification: ISO9001 SGS And BV

Basic Infomation

Certification: ISO9001 SGS and BV

Payment & Shipping Terms

Packaging Details: boiler body nude packing,auxiliary equipments in plywood

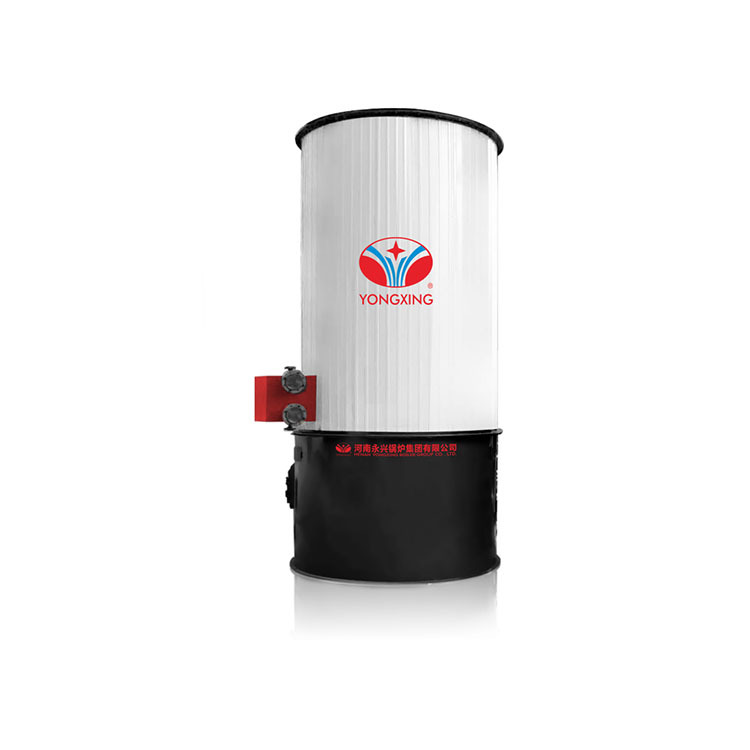

Supply Ability: 120 Piece/Pieces per Month Automatic Vertical 120-1400KW Coal Biomass Thermal Oil Boiler

Product Description

A new type of special boiler, also known as heat-conducting oil furnace, has low pressure and high temperature working characteristics, and its heating temperature can reach liquid or vapor phase>. Organic heat carrier can be used for heating in various production occasions that require uniform and stable heating and do not allow direct flame heating. The heating temperature is between 80-320℃. Organic heat carrier furnaces generally use coal, oil, and steam as fuel, heat transfer oil as the medium, and use a hot oil circulating oil pump to force the medium to circulate in the liquid phase. High working temperature can be obtained under the pressure, and can carry out high-precision control of the operation of the medium. The system has high heat utilization rate and convenient operation and maintenance. It is a safe, efficient and energy-saving ideal heating equipment. The type chain grate organic heat carrier furnace is a new type of horizontal multi-pass tubular heat carrier furnace, with close-packed radiant heating tubes arranged in the furnace. Dense convection tube bundles are installed on the left and right sides of the furnace. It adopts light chain grate to realize mechanical coal feeding, equipped with blower and induced draft fan for mechanical ventilation, and equipped with scraper type slag discharger to realize automatic slag discharge. The front and rear arches of the furnace adopt a new type of energy-saving technology arches. The fuel falls from the coal hopper to the grate, and after entering the furnace to burn, the flame refracts upward through the back arch and turns upwards through the combustion chambers on both sides of the body to turn to the front smoke box, and then folds back from the front smoke box to the tube bundle in the boiler and passes through the rear smoke box It enters the economizer, and is then drawn by the induced draft fan through the flue to the chimney and exhausted to the atmosphere. ◆Product use: Chemical industry-oleochemical industry, polymerization industry, reaction tank, distillation, concentration. Plastic industry-plastic firing, extrusion and shaping. Textile industry-resin setting machine, dyeing machine, drying chamber, high temperature machine, drum machine. Food industry-cooking, drying, vegetable oil refining. Paper Industry-Multi-layer cardboard for packaging cartons, drying, and drying. The 　　 it-heating of metal electroplating tanks, coating condensation, drying, medical industry distillation, reduction, concentration, dehydration, etc.

⑴. Heating furnace: The main body is the main part of the heating furnace system, the organic heat carrier obtains heat energy from this, and the main part is the main part of the furnace and the base. ⑵. Hot oil circulating pump: The hot oil circulating pump is the power of the closed-circuit forced circulation of the heat transfer oil. Each heating furnace is required to be equipped with two pumps, one of which is a spare. ⑶. Expansion tank (high location tank): The expansion tank is used to compensate for the volume change of the heat transfer oil due to temperature changes, thereby stabilizing the pressure of the heating medium of the system and also helping the system to dehydrate and exhaust steam. Therefore, the expansion tank should be set in other equipment or pipelines than the system The high liquid level should be maintained when it is higher than normal work. When a sudden power outage or a hot oil circulation pump fails and an emergency shutdown is required, the cold oil replacement valve can be opened. At this time, the cold oil in the high tank uses its position energy to flow through the furnace tube. Into the oil storage tank to prevent the heat transfer oil in the furnace tube from overheating. ⑷. Oil storage tank (lower tank): The oil storage tank is mainly used to store the heat transfer oil discharged from the upper tank, furnace tube and the system. It should be in a low level state when working, and is ready to accept external heat transfer oil at any time. The exhaust port should be connected to a safe area and no valve should be installed. ⑸. Oil injection pump (gear pump): used to supplement or pump out heat transfer oil to the system. The direction of the arrow on the pump body is the rotation direction of the main shaft and the flow direction of the medium. ⑹. Oil filter type oil filter): The oil filter is used to filter and remove foreign matter in the heating system. ⑺. Oil-steam separator: The oil-steam separator is used to separate and remove air, water vapor and other gases in the heating system, so as to ensure the stable operation of the heat transfer oil in the liquid phase without gas and water.

Specification

item	value
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms
Local Service Location	None
Showroom Location	None
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Marketing Type	Ordinary Product
Warranty of core components	1 Year
Core Components	NoEnName_Null
Condition	New
Type	Natural Circulation
Usage	Industrial
Structure	hot oil tube
Pressure	Low Pressure
Steam Production	0
Style	VERTICAL
Fuel	COAL BIOMASS FIRED
Place of Origin	Henan, China
Brand Name	Yongxing
Output	Heating
Dimension(LWH)	Depends
Weight	5~50ton
Certification	ISO9001 SGS and BV
Warranty	1 Year
Key Selling Points	Accurate temperature control
Color	any color as your require
Rated Steam Capacity	120-1400KW
Highest Wokring Temperature	350C
Design pressure	1.1Mpa
Working pressure	0.8Mpa
Thermal Efficiency	75-80%
Furnace Oil Volume	0.1-1.02 M3/h
Circulation Oil Volume	10-100 M3/h

Packing & Delivery

Company Profile

Henan Yongxing Boiler Group Co., Ltd. has the world's advanced level of WNS, SZS oil and gas boiler series; The SHL series chain grate boiler designed and manufactured by introducing advanced German chain grate combustion technology is at the leading level in China; DZL type two wing flue products series, known as the third generation fast installation boiler, are national patent products and high-quality products of the former Ministry of machinery; SZL assembled chain boiler adopts water-cooled arch and membrane wall, which is original in China and is in the leading position in technology; Henan Yongxing Boiler Group Co., Ltd. is a limited liability company specializing in the research and development, manufacturing and sales, and installation services of various types of boilers and thermal mechanical equipment. The company holds A-level boiler manufacturing qualification, A-level pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and has passed the ISO9001:2000 quality management system certification. The company strictly follows the ISO9001 international quality management system assurance mode, carries out quality management and quality inspection control activities, and the product quality is stable. It has been rated as "contract abiding and law abiding enterprise" by Henan industry and Commerce Bureau, as "national integrity and law abiding enterprise" by the Ministry of agriculture, as a member unit of China Association for quality and technical supervision, and has obtained a number of patented technologies, such as coal-fired, fuel oil, gas, electric heating, steam boiler, hot water boiler, boiling water boiler, organic heat carrier furnace, hot air furnace, circulating fluidized bed boiler The supercharger, the gas integrated environmental protection boiler and A-class pressure vessel developed around the coal-fired environmental protection problems strictly implement the national and industrial standards. The product design is reasonable, the production process is advanced, and the technical content is in the leading position among the similar products in the country. It has the characteristics of compact structure, low noise, high thermal efficiency, safe and reliable operation, beautiful appearance and high degree of automation, All the environmental protection indexes meet the requirements of national environmental protection standards for class I areas, and are excellent products recommended by the environmental protection department. In order to meet the market demand, the company has formed a complete business system from product development, manufacturing and sales, equipment selection, engineering project planning, design and equipment installation, system debugging, maintenance to operator training, etc., which can provide users with convenient and efficient all-round services. The company has formed a "people-oriented" management concept, with "high-tech manufacturing high-quality products" as the goal, the company has formulated a number of preferential policies, created a relaxed talent environment, and recruited elites from all sides, resulting in a good situation of synchronous growth of talents and enterprises. The company now has 12 senior engineers, 36 engineers and 50 professional and technical personnel, who have developed fruitful results in the field of boiler and pressure vessel. The company has achieved the management goal of "first-class talents, first-class management, first-class quality and first-class service"" "Speed, innovation, transcendence, integrity" is Yongxing people's corporate philosophy, "quality, pragmatic, efficient" is Yongxing people's permanent commitment. We are willing to cooperate with customers wholeheartedly and create brilliance together! Welcome leaders and colleagues in the industry to visit our company!

FAQ

1. who are we?
We are based in Henan, China, start from 2005,sell to Southeast Asia(50.00%),South Asia(9.00%),Western Europe(6.00%),Central America(5.00%),Northern Europe(4.00%),Eastern Europe(4.00%),Africa(4.00%),Southern Europe(3.00%),South America(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Domestic Market(2.00%),Mid East(2.00%),North America(2.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hot-water boiler,Steam boiler

4. why should you buy from us not from other suppliers?
Henan Yongxing boiler has been specialized in boiler production for more than 20 years, and its technical level is at the leading level in China. In recent years, the group company has won 27 national patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
