Home /Products/Thermal Oil Boiler/VERTICAL the new oil and gas boiler has high utilization rate and wide application range

VERTICAL the new oil and gas boiler has high utilization rate and wide application range

1.0 Units
MOQ
VERTICAL the new oil and gas boiler has high utilization rate and wide application range
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Retail, Construction Works , Other
Showroom Location: Indonesia, Bangladesh, South Africa
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty Of Core Components: 1 Year
Core Components: NoEnName_Null
Condition: New
Type: Natural Circulation
Usage: Industrial
Structure: Water Tube
Pressure: Low Pressure
Steam Production: Max. 8t/h
Style: VERTICAL
Fuel: Gas-fired
Output: Steam
Dimension(L*W*H): Refer To The Model
Weight: Refer To The Model
Warranty: 1 Year
Key Selling Points: Automatic
Product Name: Fuel Gas Hot Water Boiler
Application: Industrial Production
Working Pressure: 0.7---2.5Mpa
After Warranty Service: Video Technical Support, Online Support
Local Service Location: Indonesia, Pakistan, Sri Lanka
After-sales Service Provided: Overseas Service Center Available
Certification: ISO
Basic Infomation
Certification: ISO
Payment & Shipping Terms
Packaging Details: customized
Supply Ability: 10 Unit/Units per Month
Product Description
Product Description

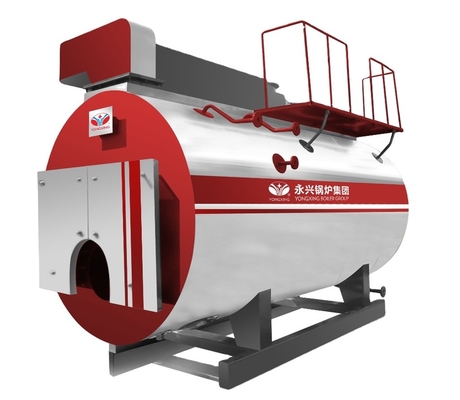

The CWNS type fully automatic fired hot water boiler is a fast-installed horizontal internal combustion three-pass fire tube structure. The offset furnace liner wet back layout is adopted, and the high-temperature flue gas sequentially rushes through the second and third return flue pipes, and then is discharged into the atmosphere from the back flue chamber through the chimney. The boiler is equipped with world-famous burners, adopts advanced technologies such as automatic combustion ratio adjustment, automatic feed water adjustment, program start and stop, and automatic operation, and has automatic protection functions such as operating water temperature control, over-temperature, over-pressure flameout, etc. This type of boiler has the characteristics of compact structure, safety and reliability, simple operation, rapid installation, low pollution, low noise and high efficiency. It is widely used in enterprises, hotels, hospitals, office buildings, civil buildings and other facilities for industrial steam, life and heating.
1. Boiler proprietary technology Fully wet-backed back-combustion chamber, the back-combustion chamber is butt-connected with the rear tube plate, and the boiler is 99.9% fully butt-welded, with the lowest stress and more reliable quality. 2. Large diameter corrugated furnace The boiler combustion chamber is composed of a large-diameter full-corrugated furnace, with large combustion space, complete fuel combustion, effective absorption of thermal expansion, and large radiant heating surface. 3. Sufficient heat The total heating area of ​​the boiler is sufficient to fully absorb the effective heat, the exhaust gas temperature is low, the heat loss is small, the output is sufficient, and the efficiency is high. 4. Strong thermal load regulation ability The pot shell has a large diameter, large water capacity, strong adaptability to load changes, and stable output. 5. Thoroughly solve the problem of hot water boiler supercooling boiling. The return system of the hot water boiler is scientifically arranged, which increases the disturbance of the water side of the heating surface in the high temperature zone, avoids the phenomenon of subcooling boiling in local areas, and completely solves the problem of high temperature zone pipes. The problem of cracks in the plate and tube ends. 6. Multifunctional safety and explosion-proof device The back panel of the boiler is equipped with an explosion-proof device connected to the furnace to prevent the high energy generated at the moment of deflagration in the furnace when the fuel is violently ignited in the furnace. It can automatically reset, and has a fire sight glass and maintenance. The function of the channel is to make use of the adjustment of the combustion flame during operation to facilitate furnace inspection and maintenance. 7. Convenient maintenance in the boiler. The top of the boiler is equipped with a manhole, and the middle and lower parts of the front and rear ends of the boiler are respectively equipped with unique hand-hole devices, which facilitate the inspection and cleaning of the equipment in the boiler and the bottom of the boiler. 8. Unique front and rear smoke box sealing. The smoke box adopts double-opening smoke box door, which is easy to open, multi-stage labyrinth seal, special sealing material, good compressibility, completely block the leakage of smoke, and can be reused. 9. Reliable pressure and temperature protection. Multiple control protections for boiler pressure and water temperature, as well as over-smoke temperature protection, ensure the safety of boiler operation. 10. Leading level of automatic control The boiler controller adopts Siemens/Delixi electrical components with reliable performance. There are three types of controllers: ordinary type, Chinese and English menu type with LCD display, touch screen type with man-machine dialogue remote control
Specification
Project model CWNS series hot water boiler
The rated thermal power (Mw) 0.35 0.7 1.05 1.4 2.1 8.4 10.5 12.6 2.8 3.5 4.2 5.6 7 to 14
Backwater temperature (℃) 65
Outlet water temperature (℃) 85
Boiler thermal efficiency (%) 91-95
Fuel consumption Diesel (Kg/h) 32 65.4 98 131 196.2 261.6 327 392.4 523.2 654 784.8 981 1177 1310
Heavy oil (Kg/h) 34 69.5 105 139 208.5 278 347.5 417 556 695 864 1042.5 1251 1390
Natural Gas (M3 /h) 39.5 79.3 119 159 237.9 317.2 396.5 475.8 644 793 951.6 1189.5 1427.4 1586
LPG (m3/h) 14.2 29 43.5 58 87 116 145 174 232 290 348 435 522 580
Urban Gas (M3 /h) 84 168.5 253 337 505.5 674 842.5 1011 1348 1685 2022 2527.5 3033 3370
Boiler transportation dimension length (mm) 2800 3500 4100 4500 4700 4550 5700 6300 7000 7200 7840 8100 8230 8250
Width (mm) 1600 1600 1900 2000 2110 2210 2500 2600 2700 2800 2860 3100 3100 3400
High (mm) 2000 2100 2310 2360 2470 2580 2800 2900 3200 3300 3400 3400 3550
Chimney Diameter (mm) 250 350 430 450 450 550 650 650 650 800 900 1200 1200
Heating area (㎡) 3000 6000 9000 12000 18000 24000 30000 36000 48000 60000 72000 90000 108000 120000
Heated water quantity (T) 7 15 22 30 45 60 75 90 120 150 180 225 270 300
item
value
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works
After Warranty Service
Video technical support, Online support
Local Service Location
None
Showroom Location
None
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
Ordinary Product
Warranty of core components
1 Year
Core Components
NoEnName_Null
Condition
New
Type
Natural Circulation
Usage
Industrial
Structure
Water Tube
Pressure
Low Pressure
Steam Production
Max. 30t/h
Style
VERTICAL
Fuel
Gas-fired
Place of Origin
China
Henan
Brand Name
YONGXING
Output
Steam
Dimension(L*W*H)
refer to the model
Weight
refer to the model
Certification
ISO
Warranty
1 Year
Overseas service center available
Key Selling Points
Automatic
Product name
Fuel gas hot water boiler
Application
Industrial Production
Working Pressure
0.7---2.5Mpa
Packing & Delivery
Company Profile
Henan Yongxing Boiler Group Co., Ltd. has the world's advanced level of WNS, SZS oil and gas boiler series; The SHL series chain grate boiler designed and manufactured by introducing advanced German chain grate combustion technology is at the leading level in China; DZL type two wing flue products series, known as the third generation fast installation boiler, are national patent products and high-quality products of the former Ministry of machinery; SZL assembled chain boiler adopts water-cooled arch and membrane wall, which is original in China and is in the leading position in technology; Henan Yongxing Boiler Group Co., Ltd. is a limited liability company specializing in the research and development, manufacturing and sales, and installation services of various types of boilers and thermal mechanical equipment. The company holds A-level boiler manufacturing qualification, A-level pressure vessel manufacturing qualification and mechanical and electrical equipment installation engineering professional contracting qualification, and has passed the ISO9001:2000 quality management system certification. The company strictly follows the ISO9001 international quality management system assurance mode, carries out quality management and quality inspection control activities, and the product quality is stable. It has been rated as "contract abiding and law abiding enterprise" by Henan industry and Commerce Bureau, as "national integrity and law abiding enterprise" by the Ministry of agriculture, as a member unit of China Association for quality and technical supervision, and has obtained a number of patented technologies, such as coal-fired, fuel oil, gas, electric heating, steam boiler, hot water boiler, boiling water boiler, organic heat carrier furnace, hot air furnace, circulating fluidized bed boiler The supercharger, the gas integrated environmental protection boiler and A-class pressure vessel developed around the coal-fired environmental protection problems strictly implement the national and industrial standards. The product design is reasonable, the production process is advanced, and the technical content is in the leading position among the similar products in the country. It has the characteristics of compact structure, low noise, high thermal efficiency, safe and reliable operation, beautiful appearance and high degree of automation, All the environmental protection indexes meet the requirements of national environmental protection standards for class I areas, and are excellent products recommended by the environmental protection department. In order to meet the market demand, the company has formed a complete business system from product development, manufacturing and sales, equipment selection, engineering project planning, design and equipment installation, system debugging, maintenance to operator training, etc., which can provide users with convenient and efficient all-round services. The company has formed a "people-oriented" management concept, with "high-tech manufacturing high-quality products" as the goal, the company has formulated a number of preferential policies, created a relaxed talent environment, and recruited elites from all sides, resulting in a good situation of synchronous growth of talents and enterprises. The company now has 12 senior engineers, 36 engineers and 50 professional and technical personnel, who have developed fruitful results in the field of boiler and pressure vessel. The company has achieved the management goal of "first-class talents, first-class management, first-class quality and first-class service"" "Speed, innovation, transcendence, integrity" is Yongxing people's corporate philosophy, "quality, pragmatic, efficient" is Yongxing people's permanent commitment. We are willing to cooperate with customers wholeheartedly and create brilliance together! Welcome leaders and colleagues in the industry to visit our company!
FAQ
1. who are we?
We are based in Henan, China, start from 2005,sell to Southeast Asia(50.00%),South Asia(9.00%),Western Europe(6.00%),Central America(5.00%),Northern Europe(4.00%),Eastern Europe(4.00%),Africa(4.00%),Southern Europe(3.00%),South America(3.00%),Oceania(3.00%),Eastern Asia(3.00%),Domestic Market(2.00%),Mid East(2.00%),North America(2.00%). There are total about 301-500 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
hot-water boiler,Steam boiler

4. why should you buy from us not from other suppliers?
Henan Yongxing boiler has been specialized in boiler production for more than 20 years, and its technical level is at the leading level in China. In recent years, the group company has won 27 national patents.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
