Home /Products/Concrete Belt Conveyor/2022 heat resistant high quality powered curve conveyor with PVC belt factory wholesale 180 degree and 90 degree rotation belt conveyor

2022 heat resistant high quality powered curve conveyor with PVC belt factory wholesale 180 degree and 90 degree rotation belt conveyor

1.0 Sets
MOQ
2022 heat resistant high quality powered curve conveyor with PVC belt factory wholesale 180 degree and 90 degree rotation belt conveyor
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: Viet Nam
Condition: New
Material: Stainless Steel
Material Feature: Heat Resistant
Structure: Conveyor System
Voltage: Customized
Power: 15-65KW
Dimension(L*W*H): Customized
Warranty: 1 Year
Width Or Diameter: Customized
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2022
Warranty Of Core Components: 1 Year
Core Components: Motor, Other, Gear, Gearbox, Engine, PLC, Governor, Driving Wheel, Driven Chain
Weight (KG): 130 Kg
Keyword: Turning Belt Conveyor
Application: All Industries
Belt Material: PVC Belt
Motor: Wanshsin
Roller Material: Steel
Local Service Location: Viet Nam
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden case / no packing
Supply Ability: 2000 Set/Sets per Month
Product Description
Product Overview

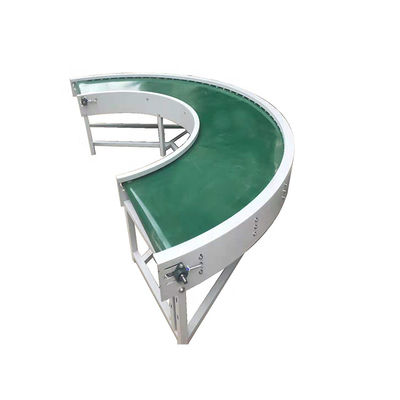

180 degree turning conveyor

180 degree turning conveyor applies to the auxiliary equipment of food, medicine, electronics, home appliances, chemical industry and other assembly lines for conveying products ≥8*8mm. It can be designed into different angles and sizes according to the docking distance of the equipment to meet the actual requirements of turning on site.
FEATURES AT A GLANCE
The features of turning conveyor
1. Reducing labour costs: do not need a particular person to inspect and maintain the belt device, only need regular inspection. Moreover, the fault is easy to find and easy to eliminate. 2. Easy to use: debugging principle with the ordinary belt conveyor, any belt conveyor operators can be debugging 3. It is simple to maintain: only special-shaped drum is the wearing part, the rest are standard parts, users can maintain and repair it by themselves, do not need special personnel. 4. Easy to install: ground anchor, concrete foundation, point column can be achieved 5. Reducing the initial investment of equipment.
Products Display
Customer Photos
Product Paramenters
Name
90 degree turning conveyor
90 degree turning conveyor
180 degree turning conveyor
180 degree turning conveyor
180 degree turning conveyor
Products Model
SQ-ZWJ100-1
SQ-ZWJ100-1
SQ-ZWJ100-2
SQ-ZWJ100-2
SQ-ZWJ100-2
Run mode
Plane or Up and down
The belt width
W
200-600
800-1200
1100-1200
Non-standard custom
500~1500
Large radius
Rd
1100
1500
1700
Non-standard custom
Max Rd6000
Small radius
R
500-900
500-700
500-600
Non-standard custom
Max R200
The motor power
P
200-400W
200-400W
400-750W
Non-standard custom
200W~2.2KW
Speed M/min
v
5 m/min [speed of center radius]
5 m/min [speed of center radius]
5 m/min [speed of center radius]
Non-standard custom
0.5--60M/min
Bearing kg/M
3 kg/m
3 kg/m
3 kg/m
Non-standard custom
MAX100KG
PRODUCT CONFIGURATION
Driven Chain
Motor
PVC Belt
Company Profile
Factory Introduction
Shenzhen Shunqiang Technology Co., Ltd founded in 2009, is a collection R&D, sale and service as one of the non-standard automation equipment manufacturer. And we set up an overseas factory in Vietnam in 2019. Our main business has included belt conveyor line, roller conveyor line, times the speed chain conveyor line, chain plate conveyor line, hanging line, automation, integration, logistics line production line, and the application of mechanical products. With years of accumulated professional technology and application examples, our company's products have been involved in auto parts, new energy charging piles, industrial appliances, household appliances, electronic communications, plastic products, and other industrial fields.
FAQ
1. Q: Hi, are you a manufacturer?
A: Yes, we are. We are a Chinese assembly line manufacturer. Our factory is located in the south of China; No. 20, Xianzhuang Road, Shangcun Community, Gongming Street, Guangming New District, Shenzhen City China. And we also have an overseas facotry in Vietnam.

2. Q: What’s your primary business?
A: Our mainly business: belt conveyor line, roller conveyor line.
