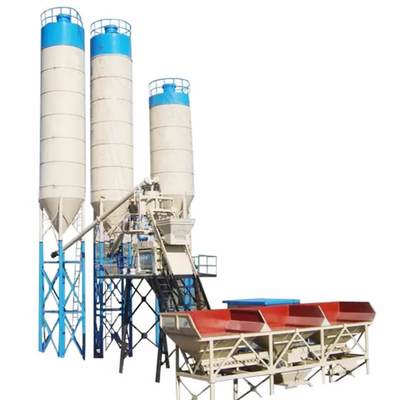

HZS series belt conveyor concrete mixing plant, on the basis of the combination advantages from various foreign mixing building and station and advanced technology, has been developed and produced. It adopts modular strueture design, which maintains convenient installation and removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency.
Besides, the HZS series belt conveyor concrete mixing plant adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance.
The HZS series belt conveyor conerete mixing plant is the optimal equipment of large and medium construction sites, water power, highway, harbor, bridge, airport, large precast products plant and commercial concrete plants and so on.
|
Model |
HZS60 |
HZS75 |
HZS90 |
HZS120 |
HZS150 |
HZS180 |
|
Discharging Capacity (L) |
1000 |
1500 |
1500 |
2000 |
2500 |
3000 |
|
Charging Capacity(L) |
1600 |
2400 |
2400 |
3200 |
4000 |
4800 |
|
Maximum Productivity(m³/h) |
60 |
75 |
90 |
120 |
150 |
180 |
|
Charging Model |
belt conveyor |
Skip Hopper |
belt conveyor |
belt conveyor |
belt conveyor |
belt conveyor |
|
Standard Discharging Height(m) |
4.2 |
4.2 |
4.2 |
3.8~4.5 |
4.5 |
4.5 |
|
Number of Species of Aggregate |
3~4 |
3~4 |
4 |
4 |
4 |
4 |
|
Maximum Aggregate Size(mm) |
≤80mm |
≤80mm |
≤80mm |
≤120mm |
≤150mm |
≤180mm |
|
Cement/Powder Silo Capacity(set) |
3×100T |
3×100T |
3×100T |
4×100T or 200T |
4×200T |
4×200T |
|
Mixing Cycle Time(s) |
60 |
60 |
60 |
60 |
30 |
30 |
|
Total Installed Capacity(kw) |
145 |
110 |
198.06 |
210 |
230 |
288 |
