Name: Solid Brick Making Good Quality Low Cost Brick Making Machinery Non-burning Brick Machine
Brand: Solid Brick Making Good Quality Low Cost Brick Making Machinery Non-burning Brick Machine
SKU: Interlock brick making machine
Price: 1 USD
Availability: InStock
Rating: 4.8 (182 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Applicable Industries: Building Material Shops, Manufacturing Plant, Construction WorksÂ , Energy & Mining

Showroom Location: Egypt, Spain, Thailand, UAE

Condition: New

Type: Hollow Block Making Machine

Brick Raw Material: Cement, Sand, Crushed Stone, Fly Ash,Pigment, Water

Processing: Block Making Machinery Brick Making Machinery

Method: Hydraulic Pressure

Automatic: Yes

Production Capacity (Pieces/8 Hours): 5760 Pcs/8hours

Voltage: 220V,380V

Dimension(L*W*H): 1850*1650*2650mm ( Main Machine)

Warranty: 1 Year

Key Selling Points: Easy To Operate

Brick Size: 400*100*200 Mm, 400*120*200 Mm, 200*100*60 Mm, 300*150*100 Mm, 400*150*200 Mm, 240*115*90 Mm, 200*200*60 Mm, 150*150*100 Mm, 400*200*200 Mm, 230*220*115 Mm, Other

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Marketing Type: New Product

Warranty Of Core Components: 1 Year

Core Components: PLC, Pressure Vessel, Motor

Weight (KG): 500 Kg

Product Name: Block Machine Brick Making Machine

Block Type: Hollow Concrete Brick Machine

Brick Raw Material: Concrete

Keywords: Automatic Cement Block Moulding Machine

Application: Construction Industry

Style: Solid Brick Making

Products: Paving Block Making Machine

Model: Interlock Brick Making Machine

Raw Material: Cement/Concrete/Crushed Stone/Sand/Fly Ash

Function: QT Brick Molding Plant

Basic Infomation

Model Number: Interlock brick making machine

Payment & Shipping Terms

Packaging Details: FCL/LCL

Supply Ability: 1000 Piece/Pieces per Month

Product Description

This is a kind of automatic brick making machine, adopts flat vibration, mold vibration, and squeeze compression vibration, manufactures the blocks with average density and high strength. And the unique dose charging device and the strong material-distributing structure ensure the block's quality of various materials. It adopts PLC control, and realizes the automatic plate-supplying, material-distributing, and brick-discharging. With the high efficiency, it is the ideal equipment to manufacture the new style wall material.

The block manufacturing process has five general phases:

1) Collection of raw materials

This involves looking for the main ingredients that will make the blocks, sand, cement, clay, fly ash, and other materials

2) Weighing and batching

Once the crucial raw materials, they undergo weighing so that they can meet the required weight before batching. They can be stored in cement silos, stationary, or mobile batching plant.

3) Feeding and mixing

the brick making plant starts making blocks from this stage. The materials – raw materials, water, and adhesive – are transported to the mixer. Once fed into the mixer, mixes the ingredients uniformly. This is to ensure they are of high density and quality.

4) Mixing unit to mold block

The mixture is then transported to the hopper using a conveyer belt. Once in the hopper, it finds its way to the mold block where through a combination of vibration and hydraulic pressure, compact and high-quality bricks are made.

5) Storage

The bricks laying on the pallets are transported to a storage area by manual carts.

This involves looking for the main ingredients that will make the blocks. Companies collect sand, cement, clay, fly ash, and other materials. For example, while the clay is extracted from the ground, fly ash is collected from power plants that use coal to generate electricity since it is a by-product of burnt pulverized coal. On the other hand, companies can get cement from local suppliers.

You can get different types of blocks depending on the raw material used and the shape. Hollow bricks, Paving bricks, Interlocking bricks, Solid bricks, Porous bricks.

Details Images

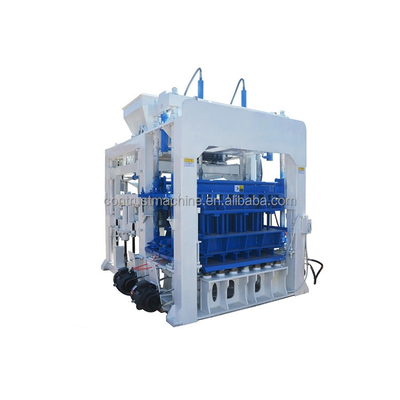

Main brick making machine

This machine is automatic in material feeding, material distributing, material scraping and carriage plate placing.

Siemens PLC

Control the operation of the brick making machine: feeding, shaking, pressing, sending and other operating instructions.

International brand, long service life, basically not damaged.

PLC control system and electrical components are imported components, including delta, Siemens and Schneider.

Mould

Manganese steel material, CNC cutting, carburizing treatment, high stength, wear resistance, life increased by 50%.

Wire cutting technology can ensure that the size of the mold is more accurate.

The carburizing treatment technology changes the molecular structure of steel.

Motor

The motor adopts Siemens and domestic famous brands to ensure the stable operation of the equipment and greatly improve the durability.

Hydraulic station

The hydraulic system can output a larger thrust, and the bricks made are denser and harder, The hydraulic system is small in size and light in weight. Simple operation, convenient adjustment and control, and easy to realize automation. More importantly, colorful bricks can be made.

Guard net

Ensure the safety of workers, good looking appearance.

Enlarge the vibrating box

The vibrating source is uniform and stronger

Attached with good brand vibration motors.
Fast start, high frequency, strong vibration force, make good brick quality.

QT4 -15 block making machine theoretical production capacity

*Size(LWH)*	Brick shape	Pcs/Mould	Pcs/hour	Pcs/8hours
400200200mm	hollow brick	4	720-960	5760-7680
24011590mm	hollow brick	12	2160-2880	17280-23040
23011070mm	solid brick	26	4680-6240	37440-49920
20010060mm	color brick	16	2880	23040
20016360mm	interlock brick	12	2160	17280

Company Profile

● What shape of brick can be made?
-- The mold of brick machine can be changed, we will send pictures to you for confirmation， to match you with the right mold. For example, there are hollow brick, solid brick, pavement road surface brick, Interlocking bricks, porous bricks, colorful brick...

● What about the Minimum Quality Order?
-- The MOQ is 1 set. If you order large amount, you will get discount.

● What is the payment terms?
-- T/T, L/C, Western Union,credit card.

● Which kind of shipment do you support?
-- Sea transportation, air transportation and international express.

● When will you deliver the machine?
-- 7-15 workdays after receiving the deposit payment.

● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.

● What about the warranty time of belt?
-- 12 months after shipment or 2000 working hours.
